Product Details:
Payment & Shipping Terms:
|
| Warranty: | 18 Months | Weight: | 1200kg |
|---|---|---|---|
| Dimension(l*w*h): | 1800*730*1330mm | Working Pressure: | 30bar |
| Air Delivery: | 2.4m3/min | Air Tank: | No |
| Application: | General Industry | ||
| High Light: | Medium Pressure Piston Air Compressor,Belt Driven Piston Air Compressor,30bar two stage piston compressor |
||

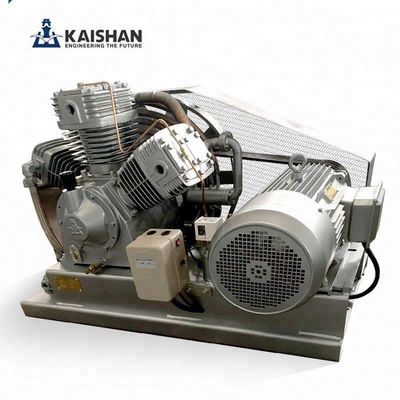

Industrial Medium-Pressure Compressors (KB series)
KB series air compressor widely used in pneumatic lock, pneumatic tool,tire inflation,blowing process,spray paint,sand blasting and fluidic element.
Capacity :0.7-4.8m3/m
Pressure:25-40bar
Technical parameters of KB series air compressor
| Model | Working pressure (bar) |
Capacity (m³/min) |
Motor power (kw) |
Dimension (mm) |
Weight (kg) |
||
| l | w | h | |||||
| KB-10 | 30 | 0.7 | 11 | 1690 | 690 | 1190 | 550 |
| KBL-10 | 25 | 0.75 | 11 | 1690 | 690 | 1190 | 550 |
| KBL-15 | 25 | 1.3 | 15 | 1800 | 730 | 1302 | 600 |
| KB-15 | 30 | 1.2 | 15 | 1800 | 730 | 1301 | 605 |
| KBH-15 | 40 | 1.2 | 15 | 1800 | 730 | 1300 | 680 |
| KB-35 | 30 | 1.7 | 22 | 1650 | 1250 | 1150 | 800 |
| KBH-35 | 40 | 1.6 | 22 | 1650 | 1250 | 1150 | 800 |
| KB-45 | 30 | 2.2 | 30 | 1650 | 1250 | 1150 | 860 |
| KBH-45 | 40 | 2 | 30 | 1650 | 1250 | 1150 | 860 |
| 2*KB-15 | 30 | 2.4 | 15 | 1616 | 1030 | 1452 | 1000 |
| 4*KB-15 | 30 | 4.8 | 15 | 1870 | 1770 | 1487 | 2100 |
| 2*KBH15 | 40 | 2.4 | 15 | 1620 | 1100 | 1452 | 1200 |
| 4*KBH15 | 40 | 4.8 | 15 | 1890 | 1840 | 1487 | 2400 |
Advangtages:
1.Small in size ,light in weight ,easy to move
2.Top material and superior technology
3.Simple structure ,high efficiency ,good performance and low price
4.Adopt the most popular design,reliable and stable ,easy for maintenance
KB sereies piston air compressor:
A.Professional design by computer
B.More stability and reliability
C.Low-speed design low-noise running , long lifespan
D.Excellent air supply ability
E.Good sealing performance
F.Powerful fan cooling system
G.Special designed for heavy duty
1.Advanced automatic molding production line in casting indusrty imported from the USA .
2.World top-class heat treatment production line imported from Japan.
3.Adcanced Machining Center imported from Japan.
4.RS100/GS100 type direct reading quantometer with high precision imported from Germany .
Features:
1.Crankshaft undergoes high-frequency hardening ,which enables it especially abrasion-proof.
2.Some relevant working unites are received precision balance,which makes it more stable.
3.Special designed is made in heat emission and air flow , which leads to low air-output temperature.
