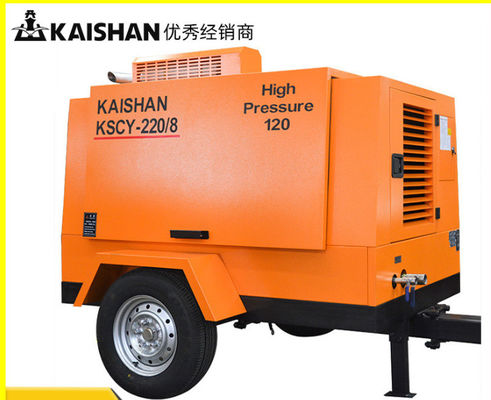

High Pressure 75HP Diesel Engine Screw Air Compressor
75HP Screw Air Compressor
,ISO9001 Screw Air Compressor
Portable diesel engine screw air compressor
Diesel mobile screw machines are widely used in mining, water conservancy, transportation, shipbuilding, urban construction, energy, military and other industries. In China, diesel mobile screw machines are replacing other kinds of screw machines at an amazing speed.
Advantages of diesel mobile screw machine:
1. High reliability: The compressor has few parts and no wearing parts, so it runs reliably and has a long service life. The intermission period of overhaul can reach 40,000-80,000 hours
2, good dynamic balance: no unbalanced inertia force, stable high-speed operation, can achieve no foundation operation, especially suitable for cooperation mobile compressor, small volume, light weight, floor area
3. Easy operation and maintenance: Silk brand wood screw removal machine is highly automated, and operators do not need to go through a long time of professional training, which can realize unattended operation
4, strong adaptability: with the characteristics of forced gas transmission, volume flow is almost not affected by the exhaust pressure, in a wide range of rotation speed can cover high efficiency
| Model | Air pressure (bar) |
Air drlivery (m3/min) |
motor power(KW) | Outlet size | Weight(kg) | Dimension(MM) | Remark |
| KSCY-220/8 | 8 | Xichai:75HP | G1 1/4×1,G3/4×1 | ||||
| KSCY-330/8 | 8 | 9.5 | Yuchai:120HP | G1 1/4×1,G3/4×1 | 1550 | 3240×1760×1785 | the length of removing the tow rod:2175MM |
| KSCY-425/10 | 10 | 12 | Yuchai:160HP | G1 1/2×1,G3/4×1 | 1880 | 3300×1880×2100 | the length of removing the tow rod:2200MM,4 wheels |
| KSCY-400/14.5 | 14.5 | 11 | Yuchai or Kangmingsi: 160HP | G1 1/2×1,G3/4×1 | 1880 | 3300×1880×2100 | the length of removing the tow rod:2200MM,2 wheels or 4 wheels |
| KSCY-550/13 | 13 | 15 | Yuchai:180HP | G1 1/2×1,G3/4×1 | 2400 | 3000×1520×2200 | 4 wheels |
| KSCY-550/14.5 | 14.5 | 15 | Yuchai:180HP | G1 1/2×1,G3/4×1 | |||
| KSCY-550/14.5K | 14.5 | 15 | Kangmingsi:180HP | G1 1/2×1,G3/4×1 | |||
| KSCY-560/15 | 15 | 15.6 | Yuchai:220HP | G1 1/2×1,G3/4×1 | |||
| KSCY-580/17 | 17 | 17 | Yuchai:260HP | G2×1,G3/4×1 | 3200 | 3600×1800×2450 | 4 wheels |
| KSCY-580/17K | 17 | 17 | Kangmingsi:260HP | G2×1,G3/4×1 | 3200 | 3600×1800×2450 | 4 wheels |
| KSCY-680/14.5K | 14.5 | 19 | Kangmingsi:260HP | G2×1,G3/4×1 | 3200 | 3600×1800×2450 | |
| KSCY-750/20 | 20 | 21 | Yuchai:310HP | G2×1,G3/4×1 |
