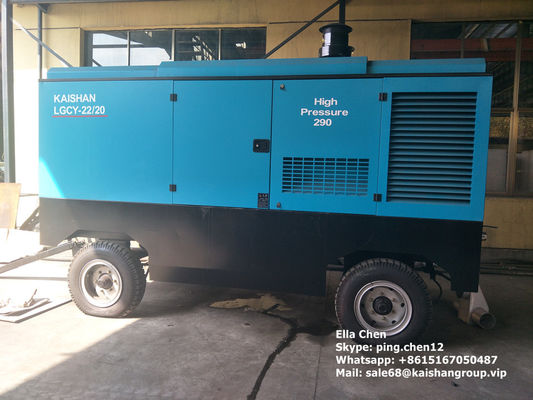

High Pressure Portable Screw Air Compressor LGCY-22/20 325 HP 20 Bar High Efficiency

Kaishan is a great brand and big factory. As a distributor, we feel content to its quality, service and hope we can go on this win-win relationship.

—— AIREP  S.A.S.

We purchased an energy saving air compressor from Kaishan. kaishan is as good as world famous brand! They have research center in my country

—— Verender (from American)

I'm Online Chat Now

High Pressure Portable Screw Air Compressor LGCY-22/20 325 HP 20 Bar High Efficiency

High Pressure Portable Screw Air Compressor LGCY-22/20 325 HP 20 Bar High Efficiency
High Pressure Portable Screw Air Compressor LGCY-22/20 325 HP 20 Bar High Efficiency High Pressure Portable Screw Air Compressor LGCY-22/20 325 HP 20 Bar High Efficiency

Large Image :  High Pressure Portable Screw Air Compressor LGCY-22/20 325 HP 20 Bar High Efficiency

Product Details:
Place of Origin: China
Brand Name: Kaishan
Certification: CE, ISO9001
Model Number: LGCY-22/20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $41000 - 50000 / Set
Packaging Details: standard packing or as per customer's request
Delivery Time: 3-10 days
Detailed Product Description
Type: Diesel Engine Screw Air Compressor Diesel Engine: Cummins
Color: Blue Service: Professional, Effective, Efficient
Cooling System: Wind
High Light:

portable rotary screw air compressor

,

mobile air compressor

LGCY SERIOUS DIESEL DRIVEN PORTABLE SCREW AIR COMPRESSOR

1- Air end of the Diesel Air Compressor for Sale :

Large diameter rotor, air end connect with diesel engine through coupling and no reduction

gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan



2- Diesel engine of Diesel Air Compressor:

Select the diesel engine of COMMINS and YUCHAI brand, satisfy the emission

requirement of Europe, low oil consumption, after sale service system all over the china



3- Good adaptability:

The Air Compressor for Sale automatically control the air delivery of diesel engine by matching the demand of air

consumption, which equal to frequency conversion control in motor power screw air compressor



Application

Diesel mobile screw air compressor, is widely used in highway, railway, water conservancy, mining, shipbuilding, construction, energy, military and other industries.

The annual output of substantial growth, the movable screw air compressor market share be way ahead. Kaishan brand diesel mobile screw compressor performance is reliable, the variety is complete, the power range of 37~300kW, the exhaust volume coverage to 30m3/min, the discharge pressure of up to 2.2MPa.



Model No: LGCY-22/20
Air capacity 22M3/min (750cfm)
Work pressure 20Bar / 300psi
Compression Stage Double
Diesel Engine
Engine Model No. YC6M395L-K20
Cylinder bore stroke number of cylinders 120*145*6
Capacity (L) 9.839
Rated RPM (r/min) 1800
Unload RPM(r/min) 1400
Rated Power (KW/hp) 288(390)
Fuel Capacity(L) 530
Package
Noise level db (a) 80±3
Outlet connection G2*1,G¾*1
Wheel size * Qty 7.5-16x4
Dimension/mm 4450*1950*2650
Weight(KG) 4850



Features of Portable Diesel Engine Driven Air Compressor LGCY-22/20 for water well drilling rig KW20

1 Air end of the Diesel Air Compressor for Sale

(1) Having large diameter rotor and air end connected with diesel engine through coupling and no reduction

(2) The rotate speed is same with that of the diesel engine's



2 Diesel engine of Diesel Air Compressor

(1)Selecting the diesel engine of COMMINS and YUCHAI brands to satisfy the emission requirements of Europe;

(2) Low oil cost and noise;

(3)High precision and reliability;

(4) Long lifespan



3 Good adaptability

The Air Compressor for sale automatically controls the air delivery of diesel engine to meet the demand of air consumption, which equal to frequency conversion control in motor power screw air compressor.
