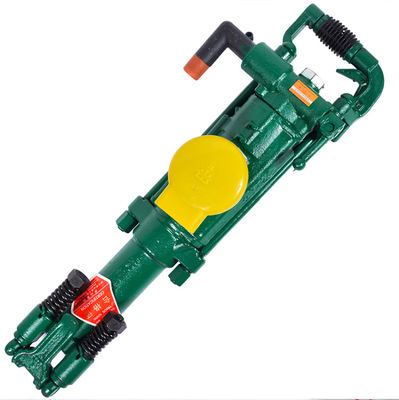

Mining Y24 Hand Held Pneumatic Jack Hammer , YT28 Jack Leg Pneumatic Mine Rock Drill

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Mining Y24 Hand Held Pneumatic Jack Hammer , YT28 Jack Leg Pneumatic Mine Rock Drill

Product Details:
Place of Origin: quzhou, Zhejiang province
Brand Name: kaishan
Certification: CE
Model Number: Y24
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $60/ pc
Packaging Details: carton and plywooden case for exported
Delivery Time: 2 days
Payment Terms: L/C, T/T or others we can discuss
Supply Ability: 1000 pcs per month
Detailed Product Description
Type: Air Drill Apply: Stone Broken
Product: Pneumatic Hammer Quality: Excellent
Usage: Mining Industry Machine Type: Drilling Tool
High Light:

Y24 Mining Pneumatic Jack Hammer

,

CE Pneumatic Jack Hammer

,

YT28 Pneumatic Mine Rock Drill

YT24, YT28 Pneumatic portable drilling machine Jack hammer Rock drill



The rock drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.

Features:
· Fit for wet drilling in medium-hard or hard rock.
· Grouped control mechanism,quick to start up, with "air on ,water on, air off,water off" mechanism,convenient to handle and easy to maintain and repair.
· Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.
OKYPdiffers form similar products particularly in its high efficiency, strong flushing and powerful torque



Item No.
HY18
YO18
Y19A
YO20
YT24
Rock Hardness
F=6-20
F=6-20
F=6-20
F=6-20
F=6-20
Piston Stroke
50mm
50mm
54mm
52mm
64mm
Cylinder Diameter
58mm
58mm
65mm
64mm
70mm
Working Pressure
0.4Mpa
0.4Mpa
0.4-0.5Mpa
0.4Mpa
0.5Mpa
Air Consumption
1.4m3/min
1.4m3/min
2.2-2.58m3/min
1.7m3/min
2.6m3/min
Drill Pipe Size
B22*108mm
B22*108mm
B22*108mm
B22*108mm
B22*108mm
Weight
18kg
21kg
19kg
21kg
27kg
Package Size(mm)
590*280*180
590*280*180
600*534*106
590*280*180
740*310*220
air leg
FT100
FT100
FT100
FT100
FT140

Mining Y24 Hand Held Pneumatic Jack Hammer , YT28 Jack Leg Pneumatic Mine Rock Drill 0

1. ratchet
2. valve cover
3. valve group
4. nuts
5. piston
6. cylinder block
7. guide sleeve
8. muffler cover
9. bushing
10. valve
11. positioning pin
12. ratchet grip
13. spiral rod
14. tower spring
15. air end
16. turning sleeve
17. brad
18. spring pad
19. brazed spring
20. brazed bolt
21. brazed
22. spline nuts
23. non-metailc hex nuts
24. long screw
25. contorl valve
26. water needle
27. gas needle
28. big gland
29. handle body
30. expansion valve
31. pressure regulator
32. control handle
33. left handle
34. elastic ring

35. small gland
36. long screw nuts
37. steel snap ring
38. tracheall elbow
39. trigger
40. directional valve
41. spring
42. water pipe elbow
43. steel snap ring
44. fastening pin
45. water injection valve body
46. steel snap ring
47. spring cover
48. water injection valve
49. right handle
50. plastic handle
51. sealing ring
52. spring
53. water needle gland
54. pad
55. gas needle pad
56. spring
57. postioning pin
58. ring seal
59. pad
60. O -ring seal
61. O -ring seal
62. O -ring seal
63. O -ring seal
64. hose clamp
65. flexible pin
66. standard spring washer
67. hexagon thin nut
68. tracheal nut

Mining Y24 Hand Held Pneumatic Jack Hammer , YT28 Jack Leg Pneumatic Mine Rock Drill 1Mining Y24 Hand Held Pneumatic Jack Hammer , YT28 Jack Leg Pneumatic Mine Rock Drill 2Mining Y24 Hand Held Pneumatic Jack Hammer , YT28 Jack Leg Pneumatic Mine Rock Drill 3Mining Y24 Hand Held Pneumatic Jack Hammer , YT28 Jack Leg Pneumatic Mine Rock Drill 4

This Series pneumatic rock drill apply in hard rock on the rock drill operation,it has strong adaptability to the working conditions.The product is energy efficiency, Its components has long life and durable.The machice can be generally used with the same type,it can greatly reduce the customer loss for spare part replacement.
