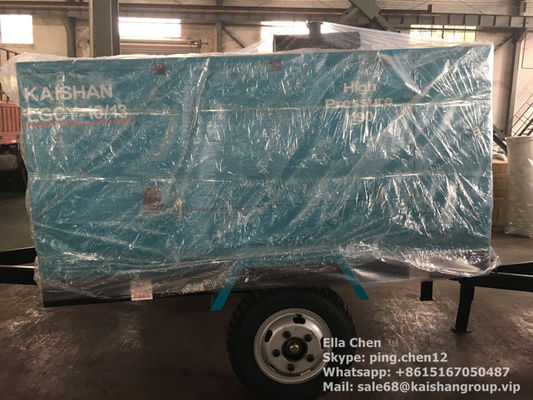

Diesel Movable Rotary Air Compressor 1.3 Mpa Working Pressure Medium Pressure 350cfm
portable rotary screw air compressor
,mobile air compressor
Characteristics:
1.World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime.
2.Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.
3.Conplete protection function with fault alarm and indication
4.Efficient filtering and seperating system.
5.Large oil-after cooler ensures the machines in optimum operation temperature when the ambient temperature is high.
6.Efficient air-cooled enclosed motor.
7.Super low noise.
Our advanced equipment:
1. Main frame: Sweden Atla
2. Bearing:100% Sweden SKF (LIFE60000hours )
3. Solenoid valve: CEME Italy
4. Electro motor: ABB WOLONG
5. Thermostat valve : Austria Hoerbiger
6. Pressure sensor: Switzerland Huba imported with original
7. Container: shanghai shenjiang
8. Oil filter: Germany MANN company imported with original
9. Oil and gas separator: Germany MANN company imported with original
10. Lubricating Oil: Sweden Atlas screw air compressor oil imported with original
11. Suction valve: Sweden Atlas imported with original
12. Pressure valve: Hoerbiger Austria company
13. PLC: Schneider Electric France
14. Oil system configuration of the pipeline were chrome-plated brass
More than 80% of imported famous brand accessories!
Application:
Portable Screw Air Compressors (Diesel power series) are widely used in various industries for roads, railways, mines, water conservation and supplies, shipbuilding, city development, energy development, military services, and others.
| Model No. | LGCY-10/13 |
| Free air delivery | 10m³/min(353cfm) |
| Working pressure | 13Bar/190Psi |
| The head model no. | SKY148LH |
| Compression Stage: | Single |
| Noise level db (a) | 80±3 |
| Outlet connection size*Qty | G1 ½×1&G¾×1 |
| Engine | |
| Engine Model No: | YC6B150Z-K20 |
| Rated RPM | 1800r/min |
| Unload RPM | 1400r/min |
| Rated Power | 110KW/150HP |
| Package | |
| Wheel size * Qtys | 6.5-16*2 |
| Weight | 2380KGS |
| Dimension (mm) | 4080*1980*2350 |
