| Power Type: | Rotary Drilling Rig | Model Number: | KY100 |
|---|---|---|---|
| Dimension: | 4100*2030*2020 MM | Usage: | Mining |
| Feed Stroke: | 2000mm | Working Pressure: | 7-14bar |
| Climb Capacity: | 30° | Engine Power: | 33kw |
| Weight: | 3100kg | ||
| High Light: | screw drive air compressor,industrial screw compressor |
||
KAISHAN 2016 KY100 portable crawler drilling rig for water well
What's the feature of our product KY100?
1. Adopt famous 2-cylinder diesel engine as driving force which has advantages of large power, powerful grade-ability, small vibration and reliable operation.
2. Adopt patent diesel engine air inlet regulating device (Patent No. : 200820087606.3) and desert air filter two-stage filter. That strengthens the crawler rock drill’s adaptability to severe environment and lengthened the diesel engine’s service life.
1. Oil supplied by two independent gear pumps, reliable operation, strong adaptability, easy maintenance.
2. Adopt gear transmission and soft connection, possessing compact structure and stable operation.
1. Adopt special hydraulic components. That improves the system’s stability and reliability.
2. Install oil liquid cooling device eliminatting the exothermic hydraulic oil’s influence on the system

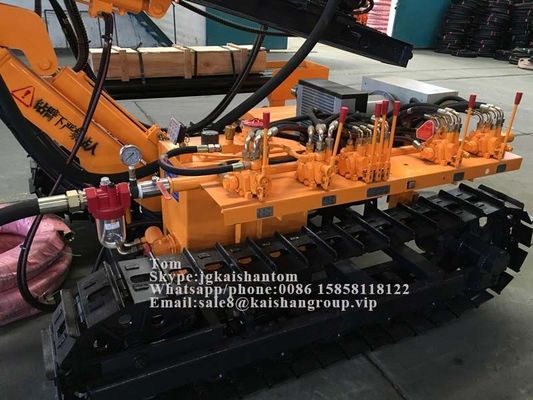

Photoes 100% taken from factory
| KY100 | KY100 | KY100J |
| Rock Rigidity | F=6-20 | F=6-20 |
| Drilling Hole Diameter | 80-105mm | 80-105mm |
| Drilling Depth | 20m | 20m |
| Traveling Speed | 0-2km/h | 0-2km/h |
| Rotation Speed | 0-65r/min | 0-65r/min |
| Rotation Torque | 980N.m | 980N.m |
| Ma Feed Force | 15000N | 15000N |
| Push Way | Cylinder.Chain | Cylinder.Chain |
| Feed Stroke | 2000mm | 2000mm |
| Climb Capacity | 30 | 30 |
| Ground Clearance | 254mm | 254mm |
| Weight | 3200kg | 3200kg |
| Dimension | 4100*2030*2020mm | 4100*2030*2020mm |
| Guide Tilt | 23.5up,118.5down | 23.5up,118.5down |
| Guide Swing | 11.5right,36.5left | 11.5right,36.5left |
| Compensation Stroke | 900mm | 900mm |
| Boom Lift | up25-60 | up35-60 |
| Engine Model | YC2108 | ZS1125GM |
| Power | 33kw | 20.5kw |
| Working Pressure | 7-14bar | 7-14bar |
| Air Consumption | ≥10m3/min | ≥10m3/min |
| Components | Standard | Standard |
| Hammer | QCZJ90 | QCZJ90 |
| Rod | φ60*2000mm | φ60*2000mm |
| Bit | φ90 | φ90 |
| Air Hose | φ38*8*20 | φ38*8*20 |
| recommended Air compressor | LGCY-10/7 | LGCY-10/7 |
Do you supply spare parts for the machine ?
We supply every spare parts of our machine,contact us for more detials.
How can i do if the machine is break down in foreign countries?
First, take easy my friend,then contact us,if possible we will send our technican by rocket, but the cost is too much,we will send our techinican by plane within 48 hours.
