High Efficiency Diesel Driven Industrial Screw Compressor , Large Portable Air Compressor

High Efficiency Diesel Driven Industrial Screw Compressor , Large Portable Air Compressor
High Efficiency Diesel Driven Industrial Screw Compressor , Large Portable Air Compressor High Efficiency Diesel Driven Industrial Screw Compressor , Large Portable Air Compressor High Efficiency Diesel Driven Industrial Screw Compressor , Large Portable Air Compressor

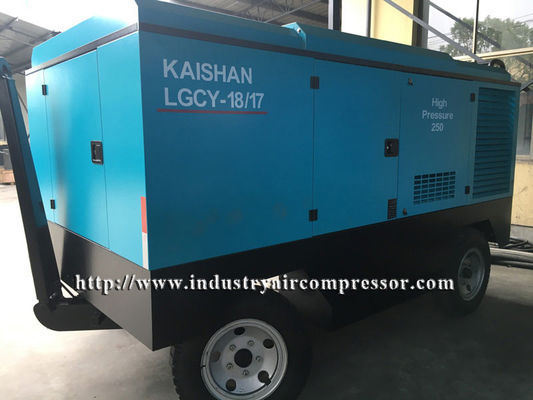

Large Image :  High Efficiency Diesel Driven Industrial Screw Compressor , Large Portable Air Compressor

Product Details:
Place of Origin: China
Brand Name: kaishan
Certification: CE
Model Number: LGCY 18/17
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD8900-20000 per unit
Packaging Details: Foamed film
Delivery Time: 20 days after payment
Supply Ability: 50 unit per month
Detailed Product Description
Configuration: Portable Weight: 3400kg
Lubrication Style:: Lubricated Warranty:: 3 Years
Dimension: 3980×1800×2450MM Place Of Origin: Zhejiang, China (Mainland)
Lubrication Style: Oil Less
High Light:

portable rotary screw air compressor

,

mobile air compressor

About Kaishan Portable Screw Air Compressor

LGCY Series Portable Screw Air Compressor are designed for a variety of segments like abrasive sandblasting, construction and mining

where they are used to drive heavy pneumatic tools like jack hammer, pavement breaker, chipping hammer, pneumatic pumps etc.

·Ideal for tropical temperatures

·Air filtration system with vacuum indication for dust environments

·Compressor oil and engine coolant coolers to optimize performance and extend engine life

·Efficient compressor oil filter

·Fuel filter with water separator

·Easy to remove, translucent PE fuel tank





Features and Advantages of LGCY SERIES ELECTRIC PORTABLE SCREW AIR COMPRESSOR

  • High Efficiency,minimal energy consuption,high reliability,minimal downtime operation
  • Vibration isolation mount technology ensure smooth and quiet operation
  • Multi-auto alarm associate with high tempreture shut down protection system
  • Easy to Maintain with off the shelf parts
  • Easy to operate with detail instructionmanual
  • ON/OFF and 0~100% stepless capacity regulation and motor automatic start/stop function for saving energy.

  • Reasonable box and airflow design,reducing the influence to capacity caused by air inlet pressure and temperature to the least.

  • Equipped with inlet air pre-filter,effectively prolong the Ilifetime of consumables and reduce lots of maintenance.



1.Airend · Direct Driven --- No Gearing, No Belt!

Rotors are the key elements in producing compressed air efficiently.Kaiser airends utilize a male 5lobe rotor(driving rotor)and a 6lobe female rotor(driven rotor).These state of the art Y profile rotors were introduced in the Kaiser series compressor.

They have the following characteristics:

Larger rotors are designed to ensure the airends have slower rotorspeeds to deliver compressed air more efficiently than smaller airends

This translates into energy cost savings and a longer unit life.

The rotor profile minimizes leakage andthe tighter clearances achieved through state of the art manufacturing processes results in higher

efficiency and improved lubrication.



The screw air compressor main configures as follows:

  • 1. Main frame: Sweden Atla
  • 2. Bearing:100% Sweden SKF (LIFE60000hours )
  • 3. Solenoid valve: CEME Italy
  • 4. Electro motor: ABB WOLONG
  • 5. Thermostat valve : Austria Hoerbiger
  • 6. Pressure sensor: Switzerland Huba imported with original
  • 7. Container: shanghai shenjiang
  • 8. Oil filter: Germany MANN company imported with original
  • 9. Oil and gas separator: Germany MANN company imported with original
  • 10. Lubricating Oil: Sweden Atlas screw air compressor oil imported with original
  • 11. Suction valve: Sweden Atlas imported with original
  • 12. Pressure valve: Hoerbiger Austria company
  • 13. PLC: Schneider Electric France
  • 14. Oil system configuration of the pipeline were chrome-plated brass
  • More than 80% of imported famous brand accessories!

Screw air compressor working principle:

  • (1) breathe in process: motor driver rotor, master-slave rotor of red ditch space in turn to air intake end wall open, the space is large, outside air filled with among them, when the inlet side end rotor turn away from the shell of the intake, in the teeth of the air is closed between groove in the Lord, from between rotor and cabinet, breathe in complete process.
  • (2) the compression process: in the end breathe in, the Lord, from the rotor tooth peaks of the formation of the cabinet and closed with the change of the rotor Angle capacity and decrease, and the spiral movement, this "compression process".
  • (3) compressed gas and oil spraying process: in the course of transmission for, volume shrinking compressed gas constantly, improve the pressure, temperature, at the same time, because of the pressure difference and into mist of lubrication was spray into the compression chamber, so as to achieve the compression, reduce the temperature seal put the role of lubrication.
  • (4) exhaust process: when the tooth rotor closed rotated to peak and chassis vent meet, compressed air began to emissions, until tooth peaks and tooth ditch the anastomosis of moved to the exhaust end face, this time for zero tooth ditch space, namely complete exhaust process. At the same time, one of the other pair tooth rotor spinning air intake end to ditch already, form the biggest space, began to breathe in process, starting a new compression cycle.

LGCY 18/17 Portable Rotary Screw Air Compressor



model LGCY-18/17

Air compressor



Air delivery( m3/min) 18
Working pressure( Mpa) 1.7
Weight(kg) 3400
Size(mm) 3980×1800×2450
Tire Size*Qty 6.50-16×4

Diesel engine



manufacturer CUMMINS
model 6CTA8.3-C260
type Screw type
Method of air suction Pressurize med-cool
diameter *stroke * number of cylinders 114×135×6
Exhauste volume of piston(L) 8.3
rated speed(r/min) 1800
Unloading speed(r/min) 1400
rated power kW(HP) 194(260)
diesel cubage (L) 21.9
fuel cubage(L) 380
electrical system voltage (v) 24
compressor
No of compression stage 1
Compressor oil capacity(L) 48
air supply valve

G2*1

G3/4*1







Main Products

Stationary Type:

1.Electromotor Powered Screw Air Compressor: 28~2543 cfm, 116~189 psi g, 10~544 HP.

2.Diesel Driven Screw Air Compressor: 212~1377 cfm, 102~508 psi g, 79~857 HP.

3.Electromotor Powered Reciprocating Air Compressor: 2.8~170 cfm, 116~580 psi g, 1~102 HP.

4.Diesel Driven Reciprocating Air Compressor: 48~459 cfm, 73~102 psi g, 15~102 HP.

Movable Type:

1.Diesel Driven Screw Air Compressor: 212~1377 cfm, 102~508 psi g, 79~857 HP.

2.Electromotor Powered Screw Air Compressor: 28~2543 cfm, 116~189 psi g, 10~544 HP.

3.Electromotor Powered Reciprocating Air Compressor: 2.8~170 cfm, 116~580 psi g, 1~102 HP.

4.Diesel Driven Reciprocating Air Compressor: 48~459 cfm, 73~102 psi g, 15~102 HP.
