Silent High Pressure Air Compressor / Diesel Portable Screw Air Compressor LGCY 10/13

Kaishan is a great brand and big factory. As a distributor, we feel content to its quality, service and hope we can go on this win-win relationship.

—— AIREP  S.A.S.

We purchased an energy saving air compressor from Kaishan. kaishan is as good as world famous brand! They have research center in my country

—— Verender (from American)

I'm Online Chat Now

Silent High Pressure Air Compressor / Diesel Portable Screw Air Compressor LGCY 10/13

Silent High Pressure Air Compressor / Diesel Portable Screw Air Compressor LGCY 10/13
Silent High Pressure Air Compressor / Diesel Portable Screw Air Compressor LGCY 10/13 Silent High Pressure Air Compressor / Diesel Portable Screw Air Compressor LGCY 10/13 Silent High Pressure Air Compressor / Diesel Portable Screw Air Compressor LGCY 10/13

Large Image :  Silent High Pressure Air Compressor / Diesel Portable Screw Air Compressor LGCY 10/13

Product Details:
Place of Origin: China
Brand Name: kaishan
Certification: CE
Model Number: LGCY 10/13
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD8900-20000 per unit
Packaging Details: Foamed film
Delivery Time: 20 days after payment
Supply Ability: 50 unit per month
Detailed Product Description
Configuration: Portable Weight: 2380kg
Lubrication Style:: Lubricated Warranty:: 3 Years
Diesel Engine:: Yuchai YCD4B22-95 Color: Blue
Dimension: 4080*1980*2350mm Air Delivery: 10 M3/min
High Light:

portable rotary screw air compressor

,

mobile air compressor

Kaishan LGCY 10/13 Portable Rotary Screw Air Compressor
1.On sale 5% off
2.Delivery in time
3.oversea service are available



About Kaishan Portable Screw Air Compressor

LGCY Series Portable Screw Air Compressor are designed for a variety of segments like abrasive sandblasting, construction and mining

where they are used to drive heavy pneumatic tools like jack hammer, pavement breaker, chipping hammer, pneumatic pumps etc.

·Ideal for tropical temperatures

·Air filtration system with vacuum indication for dust environments

·Compressor oil and engine coolant coolers to optimize performance and extend engine life

·Efficient compressor oil filter

·Fuel filter with water separator

·Easy to remove, translucent PE fuel tank



1.Airend · Direct Driven --- No Gearing, No Belt!

Rotors are the key elements in producing compressed air efficiently.Kaiser airends utilize a male 5lobe rotor(driving rotor)and a 6lobe female rotor(driven rotor).These state of the art Y profile rotors were introduced in the Kaiser series compressor.

They have the following characteristics:

Larger rotors are designed to ensure the airends have slower rotorspeeds to deliver compressed air more efficiently than smaller airends

This translates into energy cost savings and a longer unit life.

The rotor profile minimizes leakage andthe tighter clearances achieved through state of the art manufacturing processes results in higher

efficiency and improved lubrication.



Main Products



Stationary Type:

1.Electromotor Powered Screw Air Compressor: 28~2543 cfm, 116~189 psi g, 10~544 HP.

2.Diesel Driven Screw Air Compressor: 212~1377 cfm, 102~508 psi g, 79~857 HP.

3.Electromotor Powered Reciprocating Air Compressor: 2.8~170 cfm, 116~580 psi g, 1~102 HP.

4.Diesel Driven Reciprocating Air Compressor: 48~459 cfm, 73~102 psi g, 15~102 HP.

Movable Type:

1.Diesel Driven Screw Air Compressor: 212~1377 cfm, 102~508 psi g, 79~857 HP.

2.Electromotor Powered Screw Air Compressor: 28~2543 cfm, 116~189 psi g, 10~544 HP.

3.Electromotor Powered Reciprocating Air Compressor: 2.8~170 cfm, 116~580 psi g, 1~102 HP.

4.Diesel Driven Reciprocating Air Compressor: 48~459 cfm, 73~102 psi g, 15~102 HP.





LGCY 10-13 Portable Rotary Screw Air Compressor



model LGCY-10/13

Air compressor



Air delivery( m3/min) 10
Working pressure( Mpa) 1.3
Weight(kg) 2380
Size(mm) 4080×1980×2350
Tire Size*Qty 6.50-16×2

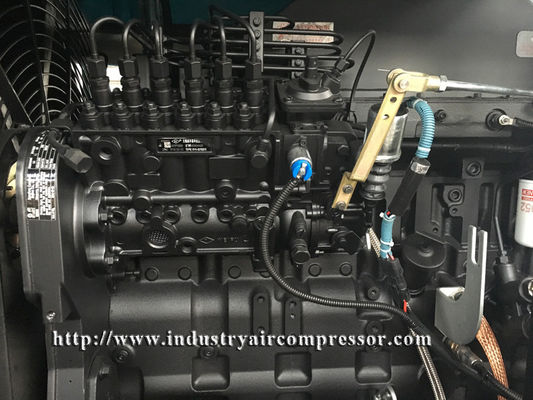

Diesel engine



manufacturer yuchai
model YC6B150Z-K20
type Screw type
Way breathing erect,straight,water cooling
diameter *stroke * number of cylinders 108×125×6
Exhaust volume of piston(L) 6.871
rated speed(r/min) 1800
Unloading speed(r/min) 1400
rated power kW(HP) 110(150)
Diesel cubage (L) 15
fuel cubage(L) 130
electrical system voltage (v) 24
compressor
No of compression stage 1
Compressor oil capacity(L) 35
air supply valve

G11/2*1

G3/4*1
