Product Details:
Payment & Shipping Terms:
|
Type: | Screw, Rotary | Lubrication Style: | Oil Less |
---|---|---|---|
Power Source: | AC Power | Voltage: | 380v/3ph/50hz(or Customized) |
Transmission Way: | Belt Diven | Cooling Method: | Air Cooling |
OEM: | Acceptable | Status: | Stationary |
Color: | Blue | ||
Highlight: | screw drive air compressor,screw type air compressors |
VSD Unit:
Industry leading VSD units are used in the LG series compressors package.
Compact VSD design allows a smaller footprint.
Monitors key functions of the unit.
Maintenance free.
The VSD minimizes starting current peak loads.
Extremely low sound level.
♦ Our single-stage rotary screw airend is engineered for its durability. Larger rotors allows for bigger bear-ings, 30%-50% slower rotor speeds results in less power consumption, lower sound levels and reduced maintenance cost .
♦ Our one piece bearing housing ensures both rotors are ridgely held by the bearings in proper alignment during transient periods such as machine startups/shutdowns or load changes.
♦ SKF bearings and SEALTECH bearing seals are utilized in all airends.
♦ All of our compressors have the latest inlet valve, airend air discharge port and oil inlet port design.
♦ Lower sound (dBA) emission level than most of our competitors results in less sound
pollution.
♦ The axial and rotational loadings are supported by different bearings for better stiff-ness and less transition noise.
♦ Simple package design requires only minimum maintenance for optimum perform-ance.
♦ Continuous cooling and circulation of lubricating oil, ensures long airend operating life.
Economic operation
The system adopts stepless capacity regulation of 0-100%. When the gas consumption is reduced, exhaust volume decreases, the motor current decreases at the same time; when no gas, air compressor run empty, empty for too long the automatic shutdown. When the gas consumption increases, the resumption of heavy truck. Energy-saving effect is optimal.
Good environment adaptability
Design of cooling system of extraordinary, especially suitable for high temperature, high humidity environment in asia. Vibration and noise reduction measures excellent, make Kaishan brand screw air compressor installation without special foundation, just leave the minimum ventilation and maintenance space, can arrange your compressor.
Model No. | Capacity | Working pressure | Electrical power | Connector | Weight | Diemension |
m3/min | MPa | kw | kgs | mm | ||
LG-1.2/8 | 1.2 | 0.8 | 7.5 | G1 | 350 | 900*700*1040 |
LG-1.0/10 | 1.0 | 1.0 | ||||
LG-0.8/13 | 0.8 | 1.3 | ||||
LG-1.7/7 | 1.7 | 0.7 | 11 | G1 | 500 | 1060*800*1230 |
LG-1.7/8 | 1.7 | 0.8 | ||||
LG-1.5/10 | 1.5 | 1.0 | ||||
LG-1.2/13 | 1.2 | 1.3 | ||||
LG-2.4/7 | 2.4 | 0.7 | 15 | G1 | 550 | 1060*800*1230 |
LG-2.4/8 | 2.4 | 0.8 | ||||
LG-2.2/10 | 2.2 | 1.0 | ||||
LG-1.7/13 | 1.8 | 1.3 | ||||
LG-3/8G | 3.0 | 0.8 | 18.5 | G1 | 600 | 1420*850*1110 |
LG-3/7 | 3.0 | 0.7 | 650 | 1080*880*1415 | ||
LG-3/8 | 3.0 | 0.8 | ||||
LG-2.7/10 | 2.7 | 1.0 | ||||
LG-2.3/13 | 2.3 | 1.3 | ||||
LG-3.6/8G | 3.6 | 0.8 | 22 | G1 | 650 | 1420*850*1110 |
LG-3.6/7 | 3.6 | 0.7 | 700 | 1080*880*1415 | ||
LG-3.6/8 | 3.6 | 0.8 | ||||
LG-3.2/10 | 3.2 | 1.0 | ||||
LG-2.7/13 | 2.7 | 1.3 | ||||
LG-5.2/7 | 5.2 | 0.7 | 30 | G1½ | 1000 | 1300*1100*1650 |

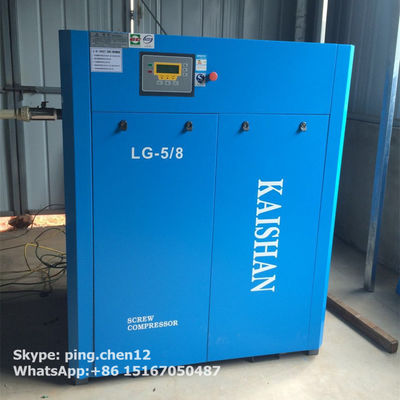

LG-5/8 | 5.0 | 0.8 | ||||
LG-4.5/10 | 4.5 | 1.0 | ||||
LG-3.7/13 | 3.7 | 1.3 | ||||
LG-6.5/7G | 6.5 | 0.7 | 37 | G1½ | 1050 | 1600*970*1205 |
LG-6.5/7 | 6.5 | 0.7 | ||||
LG-6.2/8 | 6.2 | 0.8 | 1630*910*1220 | |||
LG-5.6/10 | 5.6 | 1.0 | 1300*1100*1650 | |||
LG-4.8/13 | 4.8 | 1.3 | ||||
LG-6.0/8 | 6.0 | 0.8 | ||||
LGB-5.6/10 | 5.6 | 1.0 | ||||
LGB-4.8/13 | 4.8 | 1.3 | ||||
LG-7.4/7G | 7.4 | 0.7 | 45.0 | G1½ | 1150 | 1778*1000*1300 |
LG-7.4/7 | 7.4 | 0.7 | 1300*1100*1660 | |||
LG-7.1/8 | 7.1 | 0.8 | ||||
LG-6.5/10 | 6.5 | 1.0 | ||||
LG-5.6/13 | 5.6 | 1.3 | ||||
LG-7.5/8 | 7.5 | 0.8 | ||||
LG-6.9/10 | 6.9 | 1.0 | ||||
LG-6/13 | 6.0 | 1.3 | ||||
LG-10.5/7G | 10.5 | 0.7 | 55 | G1½ | 1500 | 1950*1160*1550 |
LG-10/8G | 10.0 | 0.8 | ||||
LG-8.7/10 | 8.7 | 1.0 | 1620*1230*1670 | |||
LG-7.5/13 | 7.5 | 1.3 | ||||
LG-10/8 | 10 | 0.8 | 1500*1250*1566 | |||
LG-8.5/10 | 8.5 | 1 | ||||
LG-13/8G | 13 | 0.8 | 75 | G2 | 1900 | 2440*1160*1620 |
LG-10/10G | 10 | 1 | ||||
LG-12/10G | 12 | 1 | ||||
LG-10/13 | 10 | 1.3 | 1580*1320*1646 | |||
LG-13/8 | 13 | 0.8 | ||||
LG-14.5/7 | 14.5 | 0.7 | ||||
LG-12/10 | 12 | 1.2 | ||||
LG-16/8G | 16 | 0.8 | 90 | G2 | 2100 | 2650*1300*1620 |
LG-16.5/7G | 16.5 | 0.7 | ||||
LG-14/10G | 14 | 1 | ||||
LG-14.5/10 | 14.5 | 1 | ||||
LG-12/13G | 12 | 1.3 | ||||
LG-20/7G | 20 | 0.7 | 110 | DN65 | 3000 | 2760*1340*1710 |
LG-20/8G | 20 | 0.8 | ||||
LG-16/10G | 16 | 1 | ||||
1G-13/13G | 13 | 1.3 | ||||
LG-20/8 | 20 | 0.8 | 2400 | |||
LG-17/10 | 17 | 1 | ||||
LG-15/13 | 15 | 1.3 | ||||
LG-24/8 | 24 | 0.8 | 132 | DN65 | 3050 | 2760*1340*1710 |
LG-22/8G | 22 | 0.8 | ||||
LG-20/10G | 20 | 1 | ||||
LG-16/13G | 16 | 1.3 | ||||
LG-28/7G | 28 | 0.7 | 160 | DN65 | 3600 | 2860*1510*1810 |
LG-27/8G | 27 | 0.8 | ||||
LG-23/10G | 23 | 1 | ||||
LG-25/10 | 25 | 1 | ||||
LG-20/13G | 20 | 1.3 | ||||
LG-30/8G | 30 | 0.8 | 185 | DN65 | 4500 | 3400*2100*2100 |
LG-21/13G | 21 | 1.3 | 3700 | 2860*1510*1810 | ||
LG-35/8G | 35 | 0.8 | 200 | DN80 | 4500 | 3400*2100*2100 |
LG-30/10G | 30 | 1 | ||||
LG-27/13G | 27 | 1.3 | ||||
LG-44/8 | 44 | 0.8 | 220 | DN100 | 4800 | 3700*2221*2050 |
LG-46/8G | 46 | 0.8 | 250 | DN100 | 6000 | 3700*2200*2200 |
LG-38/10G | 38 | 1 | 6200 | 3900*2200*2200 | ||
LG-33/13G | 33 | 1.3 | 5800 | 3700*2200*2200 |
The dimensions listed are for air-cooled units. Above 37kw, water-cooled units are available. Please con-tact the manufacturer for water-cooled units dimension. *G = Gear Driven
The products provided by us is of 1 year warranty, and on-line service will be supplied by us in time whenever you have any problem or question about the products you want to purchase or have purchased from us.
