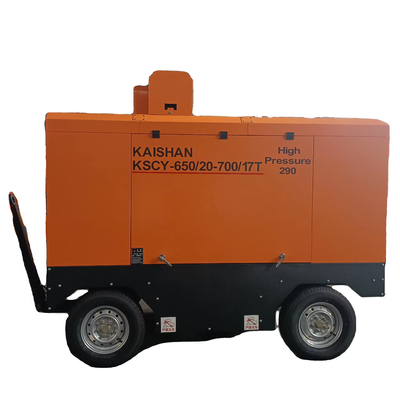

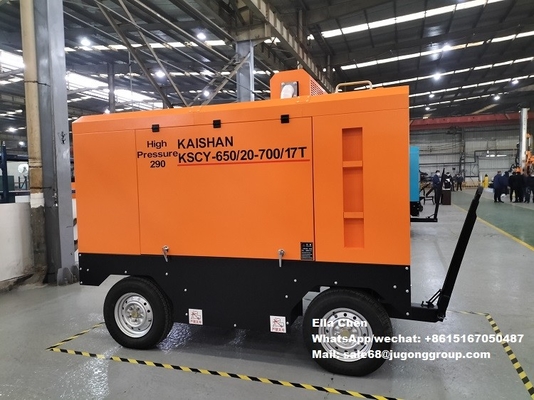

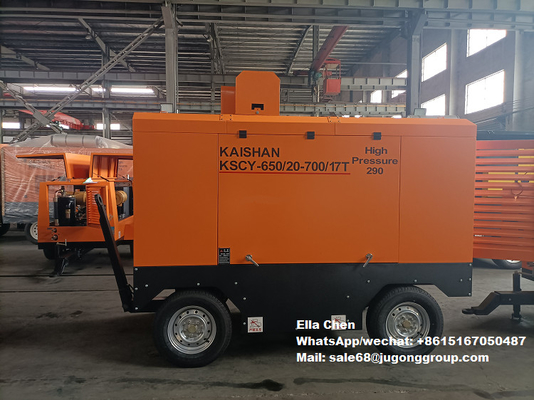

KSCY-650/20-700/17 18m3/Min 650CFM 20bar 17bar Portable Rotary Gas Screw Air Compressor Screw Compressor

Place of Origin:China
Brand Name:China
Certification:CE
Model Number:KSCY-650/20-700/17
Minimum Order Quantity:1
Price:$20000-22000/pc
Payment Terms:L/C, D/A, D/P, T/T, paypal
Supply Ability:50 sets per month
Product Details
Capacity: 650 CFM - 700CFM
Working Pressure: 17-20 Bar
Warranty: 15 Months
Configuration: Portable & Stationary
Lubrication Style: Lubricated,Oil-less
Power Source: Diesel
Application: Pneumatic Machine,Machinery Industry,Instruments,Mine
Power Source: Diesel Engine
Stationary: Portable
Lubrication Style: Oil Lubricanted
Level: High Pressure
Transmission Way: Direct Driven
Voltage: 24v
OEM: Available
Engine Model: Yuchai Or Cummins
Product Description

Silk KSCY Diesel portable Screw Air Compressor adopts 0-100% infinitely variable control of Capacity to realize optimal energy
saving effect.


Design Characteristics of Screw Rotor Profile:
1. It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce horizontal
leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing property.
2. It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower
than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life, and
reduce sensibility to sundries and oil carbide.
3. Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply to
the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.
4. It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation of Capacity Air Compressors.
Diesel portable screw air compressor, which are widely used in highway, railway, mining, water conservancy, shipbuilding, urban construction, energy, military industry and other industries.


Model No.
KSCY-650/20-700/17
Capacity
18m³/min(650cfm) & 20m3/min (700CFM)
Working pressure
20bar (290 psi)17bar (250 psi)
Diesel engine
Yuchai or Cummins
Air compressor oil capacity
48L
Compression Stage:
Double
Noise level db (a)
80±3
Outlet connection size*Qty
G2*1,G¾*1
Cylinder bore stroke number of cylinders
114*135*6
Delivery Capacity
8.3L
Rated RPM
1800r/min
Unload RPM
1400r/min
Rated Power
194KW(260HP)
Diesel engine oil Capacity
21.9L
Fuel Tank Capacity
380 L
Electrical System Voltage
24V
Wheel size * Qtys
7.5-16*4
Weight(kg)
2500
Dimension (L*W*H mm)
3000×1520×1800



KSCY-650/20-700/17 18m3/Min 650CFM 20bar 17bar Portable Rotary Gas Screw Air Compressor Screw Compressor 0
