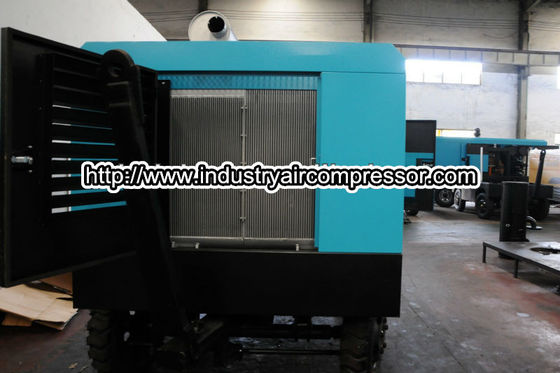

LGCY-KAISHAN LGCY-33/32 33m3/min, 2.5MPa diesel driven mobile screw air compressor for pneumatic tools
Best quality goods, lowest price, perfect service.
Cooperation terms:
1.Price: FOB any port in china.
2. Minimum order: 1set.
3. Payment: T/T, L/C, O/A ect.
4. Shipping: 25-30days.
LGCY SERIOUS DIESEL DRIVEN PORTABLE SCREW AIR COMPRESSOR
1- Air end of the Diesel Air Compressor for Sale :
Large diameter rotor, air end connect with diesel engine through coupling and no reduction
gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan
2- Diesel engine of Diesel Air Compressor:
Select the diesel engine of COMMINS and YUCHAI brand, satisfy the emission
requirement of Europe, low oil consumption, after sale service system all over the china
3- Good adaptability:
The Air Compressor for Sale automatically control the air delivery of diesel engine by matching the demand of air
consumption, which equal to frequency conversion control in motor power screw air compressor
| Model | Capacity (m3/min) | Exhaust pressure (Mpa) | Reted power(kw) | Weight (kgs) | Size (mmxmmxmm) |
| LGCY-6/7 | 6 | 0.7 | YCD4B22-95,70kW | 1400 | 3750×1920×1700 |
| LGCY-7.5/7 | 7.5 | 0.7 | YC4D80-K20,58kW | 1850 | 3900×1920×1700 |
| LGCY-8.5/14 | 8.5 | 1.4 | 4BTA3.9-C125,93kW | 1900 | 3900×1920×1900 |
| LGCY-9/7 | 9 | 0.7 | YC4D95Z-K20,70kW | 1850 | 3900×1920×1700 |
| LGCY-9/14 | 9 | 1.4 | YC6B150Z-K20,110KW | 2380 | 4080×1980×2350 |
| LGCY-9/14.5 | 9 | 1.45 | YC6B150Z-K20,110kW | 2380 | 3970×1940×2350 |
| LGCY-10/7 | 10 | 0.7 | YC4D95Z-K20,70kW | 1900 | 3900×1920×1700 |
| LGCY-10/10 | 10 | 1 | 4BTA3.9-C125,93kW | 1900 | 3900×1920×1900 |
| LGCY-12/7 | 12 | 0.7 | 4BTA3.9-C125,93kW | 2050 | 3900×1920×1900 |
| LGCY-12/7A | 12 | 0.7 | YC4A125Z-T10,92kW | 2050 | 4000×1980×1900 |
| LGCY-12/10 | 12 | 1 | YC6B150Z-K20,110kW | 2380 | 4080×1980×2350 |
| LGCY-12/12 | 12 | 1.2 | EQ6BT5.9-C160,118kW | 2380 | 4080×1980×2350 |
| LGCY-13/17 | 13 | 1.7 | 6CTA8.3-C215,158kW | 2380 | 3780×1980×2350 |
| LGCY-13/13 | 13 | 1.3 | 6BTA5.9-C180,132kW | 2750 | 3450×1520×2220 |
| LGCY-13/13A | 13 | 1.3 | YC6A190Z-T10,140kW | 2750 | 3450×1520×2220 |
| LGCY-15/13 | 15 | 1.3 | WD415.23,166kW | 3350 | 3380×1650×2500 |
| LGCY-15/13A | 15 | 1.3 | YC6A240-20,177kW | 3350 | 3380×1650×2500 |
| LGCY-16/13 | 16 | 1.3 | 6CTA8.3-C215,158kW | 3700 | 3980×1800×2450 |
| LGCY-16/17 | 16 | 1.7 | 6CTA8.3-C260,194kW | 3700 | 3650×1800×2500 |
| LGCY-17/7 | 17 | 0.7 | 6BTA5.9-C180,132kW | 3050 | 3380×1640×2350 |
| LGCY-17/14.5 | 17 | 1.45 | 6CTA8.3-C260,194kW | 3700 | 3980×1800×2450 |
| LGCY-18/17 | 18 | 1.7 | 6CTA8.3-C260,194kW | 3700 | 3980×1800×2450 |
| LGCY-18/19 | 18 | 1.9 | CUMMINS 6CTA8.3-C260 | 3700 | 3980*1800*2450 |
| LGCY-18/19A | 18 | 1.9 | YC6M260L-K20 | 3700 | 3980*1800*2450 |
| LGCY-21/35 | 21 | 3.5 | CUMMINS QSZ13-C500 | 5000 | 4600x1950x2600 |
| LGCY-21/35A | 21 | 3.5 | YC6K500L | 5000 | 4600x1950x2600 |
| LGCY-22/8 | 22 | 0.8 | 6CTA8.3-C260,194kW | 4000 | 4580×1950×2600 |
| LGCY-22/14 | 22 | 1.4 | YC6M340L-K20,250kW | 4500 | 4580×1950×2600 |
| LGCY-22/14K | 22 | 1.4 | 6LTAA8.9-C325,239kW | 4500 | 4580×1950×2600 |
|
LGCY-22/13
|
22 | 1.3 | YC6M340L-K20,250kW | 4500 | 4580×1950×2600 |
| LGCY-22/13K | 22 | 1.3 | 6LTAA8.9-C325,239kW | 4500 | 4580×1950×2600 |
| LGCY-22/13S | 22 | 1.3 | WD615.46,266kW | 4500 | 4580×1950×2600 |
| LGCY-22/20 | 22 | 2 | NTA855-P400,298kW | 4850 | 4450×1950×2650 |
| LGCY-22/20K | 22 | 2 | 6LTAA8.9-C360,265kW | 4500 | 4600×1950×2850 |
| LGCY-22/20A | 22 | 2 | YC6M340L-K20 | 4850 | 4600*1950*2850 |
| LGCY-26/20 | 26 | 2 | NTA855-P400,298kW | 4850 | 4450×1950×2650 |
| LGCY-26/20 | 26 | 2 | CUMMINS 6LTA8.9-C360 | 4500 | 4600*1950*2850 |
| LGCY-26/25 | 26 | 2.5 | CUMMINS QSZ13-C500 | 5000 | 4600x1950x2600 |
| LGCY-26/25A | 26 | 2.5 | YC6K500L | 5000 | 4600x1950x2600 |
| LGCY-26/35 | 26 | 3.5 | CUMMINS QSZ13-C550 | 6800 | 4700*2100*2850 |
| LGCY-26/35A | 26 | 3.5 | YC6K550L | 6800 | 4700*2100*2850 |
| LGCY-27/10 | 27 | 1 | YC6M340L-K20,250kW | 5000 | 4600×1950×2850 |
| LGCY-27/20 | 27 | 2 | YC6M395L-K20 | 4850 | 4600*1950*2850 |
| LGCY-27/22 | 27 | 2 | CUMMINS NTA855-P400 | 4850 | 4600*1950*2850 |
| LGCY-33/25 | 33 | 2.5 | CUMMINS QSZ13-C550 | 6800 | 4700*2100*2850 |
| LGCY-33/25A | 33 | 2.5 | YC6K550L | 6800 | 4700*2100*2850 |
| LGCY-33/35 | 33 | 3.5 | CUMMINS KTA19-P630 | 6800 | 4700*2100*2850 |
| LGCY-33/35A | 33 | 3.5 | PETER CULLER C-18ACERT | 6800 | 4700*2100*2850 |
| LGCY-39/25 | 39 | 2.5 | CUMMINS KTA19-P630 | 6800 | 4700*2100*2850 |
| LGCY-39/25A | 39 | 2.5 | PETER CULLER C-18ACERT | 6800 | 4700*2100*2850 |
