Product Details:
Payment & Shipping Terms:
|
| Type: | PISTON | Configuration:: | Portable |
|---|---|---|---|
| Power Source: | AC Power， Diesel Engine | Lubrication Style: | Lubricant |
| Place Of Origin: | Zhejiang Of China | Brand Name: | Kaishan |
| High Light: | reciprocating air compressor,air cooled air compressor |
||

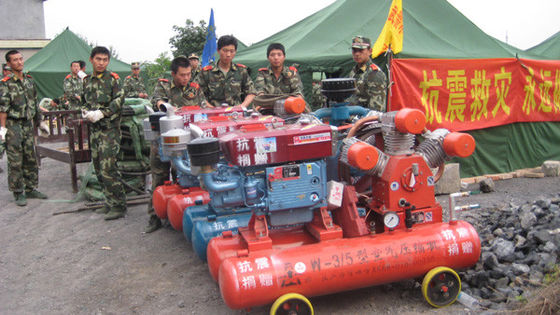

S1115 Diesel Engine For Portable Diesel Mining Piston Air Compressor W-3/5
Small mining diesel engine portable piston air compressor are mainly used to supply stable and clean compressed air to the pneumatic tools and keep them working smoothly and efficiently.
Specification for 200L Tank Portable Diesel Mining Piston Air Compressor W-3/5 :
|
Model Number |
W-3/5-D |
W-3/5 |
|
Exhaust Volume |
3M3/min |
3M3/min |
|
Exhaust Pressure |
0.5 Mpa |
0.5 Mpa |
|
Cylinder (Dia×Qty) |
120*3 |
120*3 |
|
Rated speed |
1070rpm |
1070rpm |
|
Motor |
Y160M2-2(22HP) |
S1115 (22HP) |
|
Volume of gas storage tank |
200L |
200L |
|
Dimension (L*W*H) mm |
1710*860*1245 |
1710*860*1245 |
|
Weight |
590Kg |
590 Kg |
The Related Piston Air Compressor:
| Model Number | W1.8/5 | W2.85/5 | W3.0/5 | W-3.5/5 | |
| Cylinder cylinder . | mm | 100x3 | 115x3 | 120x3 | 125×100×3 |
| Rated speed | rpm | 1000 | 1070 | 1070 | 1070 |
| Air capacity | m3/min | 1.8 | 2.85 | 3 | 3.5 |
| cfm | 63.6 | 101 | 106 | 123.55 | |
| Work pressure | Mpa | 0.5 | 0.5 | 0.5 | 0.5 |
| psig | 73 | 73 | 73 | 73 | |
| Volume of Tank | L | 130 | 160 | 200 | 200 |
| Diesel Engine | S1100(15HP) | S1110(18HP) | S1115(22HP) | ZS1120 (24HP) | |
| N.W | kg | 325 | 465 | 530 | 535 |
| G.W | kg | 365 | 515 | 590 | 585 |
| Package Size (L×W×H) | mm | 1540×640×1030 | 1710×860×1215 | 1710×860×1245 | 1690×840×1150m |
W-3/5 Diesel Driven Piston Air Compressor for YT24 Air Leg Jack Hammer :
1.The rock drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.
2.It’s suitable for drilling of horizontal or inclined holes on the medium-hard and hard rock. When it’s matched with air leg Model FT140B, it can blast holes from different directions and angles.
3. Blast hole diameter is between 36mm and 42mm. with an efficient depth from 1.5m to 2m.
Main Specification for YO18 Hand Held Jack Hammer:
| tem Name | YT24 drill |
| Weight | 24kg |
| Overall dimensions | 678mm |
| Stoke | 70mm |
| Cylinder Dia | 70 mm |
| Air pressure | 0.4-0.63mpa |
| Water pressure | 0.2-03mpa |
| Impact frequency | >31Hz |
| Air consumption | 66.7L/S |
| Drilling speed | 250mm |
| Max drilling depth | >6m |
| Air pipe inside dia | 19mm |
| Water pipe inside dia | 13mm |
| Drill bit size | 32-42mm |
| Drilll rod size | H22X108mm |
