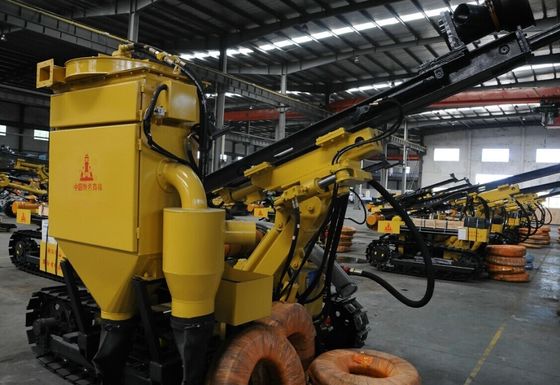

Open - Air Crawler mounted blasthole drilling rig machine , dia hole 105 - 115mm depth 30m
electric screw air compressor
,industrial screw compressor
Product Name: Environment Friendly Open-Air Crawler mounted blasthole drill for surface mining
Model# : KGH4( KY125 Environmental Protection,With Dry-type Dust Collector and Reducer)
KGH4 was upgraded as the basis of the KY100,adding the dry-type dust collector and reducer.
Imported hydraulic motor,simulate the fan blade shape line,provide efficient and stable performance;The design of the coarse filtration and fine filtration, special environmental protection, high efficiency filter material, purification efficiency up to 99%; Excellent automatic control system, to realize automatic dust discharge, embody the people-oriented design concept.
Silk blasthole drill KGH4 is a diesel powered, self-propelled crawler mounted blasthole drill for mining and quarrying. It delivers the most performance from a compact production drill.
- Solid platform ensures the longest durability in its class.
- With optional high-pressure air, it's an exceptionally versatile rotary and DTH drill.
- Highly maneuverable on narrow benches.
2.The Usage of Blasthole drill KGH4
1. The series portable drilling machine are used in a wide variety of Quarry ,Highway , Water and electricity , Surface mine,Mine project,blasting,ore and deep hole joint pipe drill work on the building project etc.
2. The series drilling rigs with air compressor,hammer together work , To blasting horizontal hole ,vertical holes ,inclines holes .
3. Specificaton of dust collector drill machine KGH4
| Model No |
Blasthole drill KGH4 |
| Rock hardness | F=6-20 |
| Hole diameter | 80-115mm |
| Economic Drill depth | 30m |
| Pressure | 0.7-1.7Mpa |
| Air consumption | 9-16m³/min |
| Rotating speed | 0-140r/min |
| Rotation torque | 1200N.m |
| Lifting capacity | 25000N |
| Propulsion Type | Hydro-Cylinder-Chain |
| Push Length | 3000mm |
| Push Speed | 280 mm/s |
| Drill rod specification(mm) | 64/76×3000mm |
| Gradeability | 30° |
| Ground clearance | 290mm |
| Walking speed | 0-2.5km/h |
| Drill arm rising angles | Down 35° Up 60° total 95° |
| Drill arm swing angle | Left 100° Right 45° total 145° |
| Carriage swing angle | Left 100° Right 45° total 145° |
| Carriage pitch angle | Down 135° Up 50° total 185° |
| Frame Max.floating | ±10° |
| Carriage Compensation | 3600mm |
| Diesel Engine | YC4D80(58KW 2400r/min) |
| Overall Dimension(L*W*H) | 5600×2700×2500(mm) |
| Total Weight | 5000kgs |
| Remark | Pneumatic-Hydraulic+Dry-type dust collector |
Other related blasthole drill
Recommend Drill Bit Φ90,Drill Hammer QCW930,Drill PipeΦ60x2000mm
