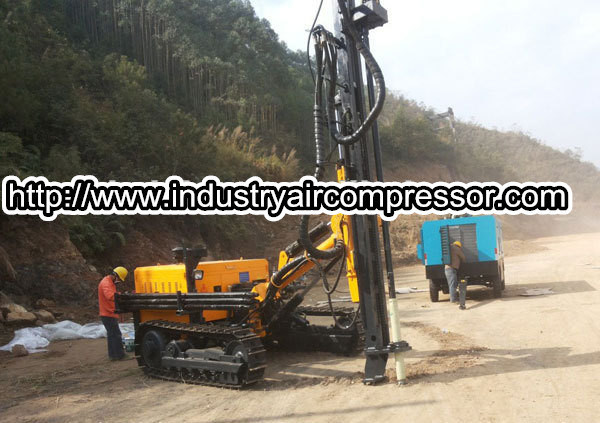

Portable high efficiency mine drilling rig machine 25m deepth / drilling machinery
electric screw air compressor
,industrial screw compressor
New product Silk manufacturer KG960 diesel engine crawler drilling rig machine 80-125mm 25m deepth
Specification
|
Rock rigidity |
F=6-20 |
|
Diameter of hole |
Φ80-125mm |
|
Optium drilling depth |
25m |
|
Rotation speed |
120r/min |
|
Rotation torque |
2000N.m |
|
Lift power |
17 KN |
|
Feed way |
oil cylinder-chain |
|
Feed distance |
3000mm |
|
Walk speed |
0-2.0 km/h |
|
gradeability |
30° |
|
Ground clearance |
320mm |
|
Weight |
6000kg |
|
Size of drill machine |
5355*2225*2365mm |
|
Sliding carriage pitch angle |
Blow 135°,elevation5°, total 145° |
|
Sliding carriage swing angle |
Left100°,right45°,total 145° |
|
Drill boom pitch angle |
Blow 50°,elevation25°, total 75° |
|
Drill boom pitch swing angle |
Left45°, right90°, total135° |
|
Sliding carriage suppling length |
1200mm |
|
power |
YC-4D80(58Kw 2400r/min) |
|
Drill pipe |
Φ76 |
|
Working air pressure |
1.0-2.4Mpa |
|
Air consumption |
9-18 m³/min |
Introduction to KG960 portable drilling rig
KG960 Surface DTH drilling rig is designed according to the requirements of mines., which adopted hydraulic technology
(1) Has the characteristics of beautiful appearance, convenient operation, stable performance.
(2)Through the optimization of the hydraulic components configuration, it is applicable to different rock drill hole.
(3) It is applied to drilling with higher altitudes with high-power four-cylinder engine, providing strong rotary torque.
(4) High torque rotary reducer can meet larger and deeper aperture drilling operations.
(5) KG960 DTH drilling rig is applied to open-pit mining, road building, tunnel digging engineering and so on.
Advantages of KG960portable drilling rig
(1) Easy operation and high efficiency as the hydraulic feeding be taken
(2) As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relift.
(3) The pressure indicator of bottom hole can observe and control the well conditions easily.
(4) Close levers, convenient to operate.
(5) Compact size and light in weight are easy to set up and transport on working plains and mountai-n area.
(6) The innovation design of carriage and drill arm make a pendulum Angle protection play horizontal and vertical hole at the same time, and the horizontal hole is very low.
(7) Convenient operation and save labour
(8) centralized layout of operating handle. It is equipped with pedals, very tidy and beautiful,easy to operation.
(9) Speeding up the rotation speed so as to meet the market demand.
