Place Of Origin: | ZHEJAING China | Product Name: | Drill Pipe Of Rock Drill |
---|---|---|---|
Drilling Bit: | 60/76/89 | Use: | Ore Mining |
Material: | Carbon Steel | Processing Type: | Casting |
Usage: | Drill Holes | Power Type: | Pneumatic |
High Light: | DTH Water Well Drill Rod,89mm Water Well Drill Rod |

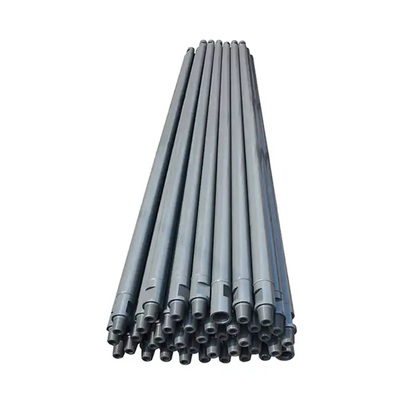

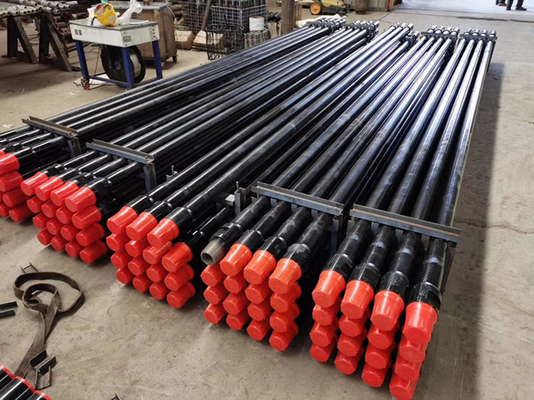

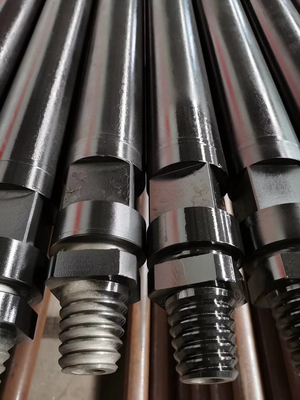

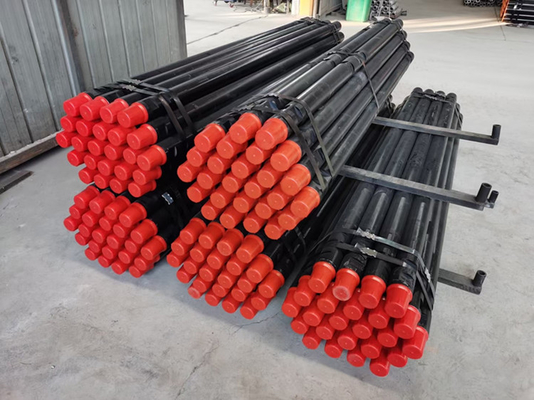

Water Well Drill Rod API 2 7/8" IF API 2 3/8" IF 89mm 2M DTH Drill Rod
Our Factory is a leading manufacturer of wireline drill rod in China. Both ISO9001: 2000 and API 5DP certificates are available for our products, and our products have been quite popular among clients from Mongolia, Kazakhstan, Russia, Iran, Afghanistan, Oman, Turkey, Thailand, Vietnam, Myanmar, Malaysia, Indonesia, Singapore, Taiwan, Colombia, Mexico, Brazil, Canada, Australia, etc. Besides, OEM service is also available. If you need C-Q series drill pipe, please contact us freely.
1-4.5m length water well drilling rod - drill pipe manufacturers
89Type drill pipe(Double buckle) | ||||
Diameter(mm) | Length(mm) | Thread model | Weight(kg) | Remarks |
89 | 1500 | API 2 3/8" IF | 28 | Nitrogen treatment Jumping-up |
89 | 2000 | API 2 3/8" IF | 34 | |
89 | 3000 | API 2 3/8" IF | 46 | |
89 | 6000 | API 2 3/8" IF | 88 | |
102Type drill pipe(Single buckle) | ||||
Diameter(mm) | Length(mm) | Thread model | Weight(kg) | Remarks |
102 | 1500 | API 2 7/8" IF | 37 | Nitrogen treatment Jumping-up |
102 | 2000 | API 2 7/8" IF | 46 | |
102 | 3000 | API 2 7/8" IF | 64 | |
102 | 6000 | API 2 7/8" IF | 118 | |
102Type drill pipe(Double buckle) | ||||
Diameter(mm) | Length(mm) | Thread model | Weight(kg) | Remarks |
102 | 1500 | API 2 7/8" IF | 38 | Nitrogen treatment Jumping-up |
102 | 2000 | API 2 7/8" IF | 47 | |
102 | 3000 | API 2 7/8" IF | 65 | |
102 | 6000 | API 2 7/8" IF | 119 |
Description |
Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling.tapered drill rods have a tough life, transferring the percussion energy from rock drill to drilling bit and then into the rock. They're also subjected to high bending stress, not to mention corrosive water in the flushing hole. |
