Type: | Vertical Type Or Horizontal Type | Name: | Air Tank |
---|---|---|---|
Usage: | Air, Nitrogen Or Vacuo | Pressure: | 8 Bar, 10 Bar, 20 Bar, 30 Bar, 40 Bar |
Volume: | 0.3m3, 0.6m3, 1m3, 1.5m3...10m3 | Warranty: | 10 Years |
Certification: | CE,ISO | Application: | Store Air,General Industry,Air Compressor,for Any Field Nailer Gun,Etc |
High Light: | Vertical Air Compressor Tank,Industrial Air Compressor Tank |

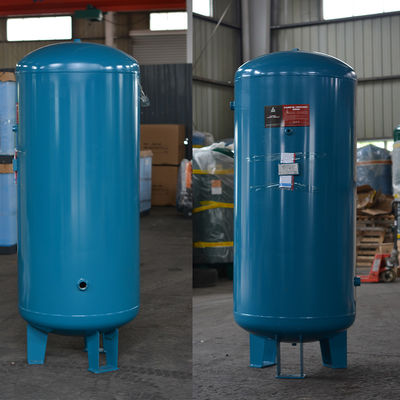

vertical type air tank horizontal type industrial pressure vessels air receiver tanks
Across industries, compressed air systems are essential features of operating facilities. A core component of compressed air systems is pressure vessels, or air receiver tanks. These provide critical support to the system’s air compressor, compensating during periods of peak demand and improving the efficiency, as well as service life, of your compressor. At Kaishan Compressor, we offer premium-quality air pressure vessels that are trusted worldwide by leading companies.
Advantages Of Kaishan Compressor’ Industrial Pressure Vessels
Choosing our industrial pressure vessels for your organization offers several benefits, including:
For shipment, we package all our air pressure vessels in a wooden plywood case. If desired, we can customize the packaging to your requirements.
Technical parameters of Pressure Vessel Series
Model | Volume (m3) |
Working pressure (bar) |
Total Height (mm) |
Inside diameter (mm) |
Net weight (KG) |
0.3/8 | 0.3 | 8 | 1560 | 550 | 92 |
0.3/10 | 10 | 1562 | 112 | ||
0.3/13 | 13 | 1564 | 168 | ||
0.3/16 | 16 | 1564 | 156 | ||
0.3/25 | 25 | 1568 | 195 | ||
0.3/30 | 30 | 1568 | 195 | ||
0.3/40 | 40 | 1572 | 262 | ||
0.5/8 | 0.5 | 8 | 2063 | 600 | 655 |
0.5/10 | 10 | 2063 | 655 | ||
0.5/13 | 13 | 2067 | 657 | ||
0.5/16 | 16 | 2067 | 657 | ||
0.6/8 | 0.6 | 8 | 1844 | 700 | 170 |
0.6/10 | 10 | 1846 | 196 | ||
0.6/13 | 13 | 1846 | 305 | ||
0.6/16 | 16 | 1846 | 240 | ||
0.6/25 | 25 | 1850 | 280 | ||
0.6/30 | 30 | 1855 | 372 | ||
0.6/40 | 40 | 1859 | 410 | ||
1.0/8 | 1.0 | 8 | 2240 | 800 | 226 |
1.0/10 | 10 | 2242 | 262 | ||
1.0/13 | 13 | 2340 | 271 | ||
1.0/16 | 16 | 2343 | 325 | ||
1.0/25 | 25 | 2351 | 490 | ||
1.0/30 | 30 | 2355 | 576 | ||
1.0/40 | 40 | 2355 | 582 | ||
1.5/8 | 1.5 | 8 | 2357 | 1000 | 338 |
1.5/10 | 10 | 2357 | 338 | ||
1.5/13 | 13 | 2359 | 388 | ||
1.5/16 | 16 | 2363 | 498 | ||
1.5/25 | 25 | 2368 | 630 | ||
1.5/30 | 30 | 2372 | 735 | ||
1.5/40 | 40 | 2380 | 1050 | ||
2.0/8 | 2.0 | 8 | 2692 | 1100 | 460 |
2.0/10 | 10 | 2692 | 460 | ||
2.0/13 | 13 | 2694 | 505 | ||
2.0/16 | 16 | 2698 | 660 | ||
2.0/20 | 20 | 2702 | 815 | ||
2.0/25 | 25 | 2706 | 998 | ||
2.0/40 | 40 | 2719 | 1470 | ||
2.5/8 | 2.5 | 8 | 2776 | 1200 | 846 |
2.5/10 | 10 | 2778 | 847 | ||
2.5/13 | 13 | 2782 | 850 | ||
2.5/30 | 30 | 2795 | 856 | ||
3.0/8 | 3.0 | 8 | 2807 | 1300 | 521 |
3.0/10 | 10 | 2809 | 621 | ||
3.0/13 | 13 | 2813 | 787 | ||
3.0/16 | 16 | 2817 | 1031 | ||
3.0/35 | 35 | 2834 | 1755 | ||
3.0/40 | 40 | 2838 | 2243 |
*Kaishan pressure vessels have been sold all over the country as well as America,Canada,Russian,Mexican,East Asia,AND Africa ect.The diameter of pressure vessel is from 600mm-1800mm. The design temperature of pressure vessel is 150℃.
Our air receiver tanks serve a role in several industries, including manufacturing, oil and gas, industrial and several other sectors. Their role in a compressed air system includes:
In many facilities, pressure vessels are essential due to their impact on the efficiency and effectiveness of your compressed air system.
