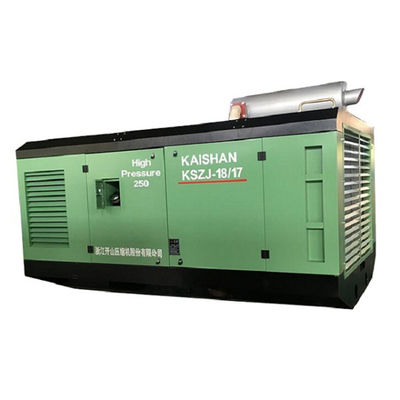

Water Well Drilling 132KW Stationary Air Compressor Screw Type 18m3 / Min

Place of Origin:China
Brand Name:China
Certification:CE
Model Number:KSZJY-18/17
Minimum Order Quantity:1
Price:$10000-20000/pc
Payment Terms:L/C, D/A, D/P, T/T, paypal
Supply Ability:500 sets per month
Product Details
Highlight:

132KW Stationary Air Compressor

,

18m3 / Min Stationary Air Compressor

,

Screw Stationary Air Compressor
Lubrication Style: Oil-less
Power Source: Diesel
Capacity: 18m3/min Air Compressor
Working Pressure: 1.7Mpa / 17bar
Configuration:: Mobile Diesel Air Compressor
Diesel Engine: Cummins Or Yuchai
Place Of Origin: Zhejiang, China
Delivery Time: 7 Working Days
Warranty: 12 Months
Product Description

 Factory diesel screw air compressor KSZJ-18/17 water well drilling 132KW stationary air compressor screw air compressor

Diesel stationary screw air compressor, which are widely used in highway, railway, mining, water conservancy, shipbuilding, urban construction, energy, military industry and other industries.

Highly reliable and efficient,This diesel screw air compressor is availble in a complete range of models.It's power ranges between 37kw and 300kw.Its air capacity is 30m3/min with the discharge pressure up to 2.2Mpa.



Silk KSZJ Diesel Screw Air Compressor is designed for water well.

Design Characteristics of Screw Rotor Profile:

1. It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing property.

2. It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life, and reduce sensibility to sundries and oil carbide.

3. Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply to the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.

4. It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation of Displacement Air Compressors.

Model
Pressure
Capacity
Motor Power
Model of Engine
Connector
Mpa
m³/min
KW
KSZJ-15/14.5
1.45
15
118
YC6A180Z-T21
G2*1,G3/4*1
KSZJ-18/17
1.7
18
191
YC6A260L-20
G2*1,G3/4*1
KSZJ-19/18
1.8
19
191
YC6A260L-20
G2*1,G3/4*1
KSZJ-29/23G
2.3
29
288
YC6M400L-K20
G2*1,G3/4*1
KSZJ-31/25-34/17
2.5 (1.7)
31 (34)
404
YC6M400L-K20
G2*1,G3/4*1
KSZJ-34/25
2.5
34
404
YC6K550-K30
G2*2
KSZJ-35/30-38/25
3.0 (2.5)
35 (38)
412
/
G2*1,G3/4*1



Water Well Drilling 132KW Stationary Air Compressor Screw Type 18m3 / Min 0Water Well Drilling 132KW Stationary Air Compressor Screw Type 18m3 / Min 1Water Well Drilling 132KW Stationary Air Compressor Screw Type 18m3 / Min 2

Water Well Drilling 132KW Stationary Air Compressor Screw Type 18m3 / Min 3
