15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection

15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection
15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection 15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection 15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection 15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection 15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection 15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection

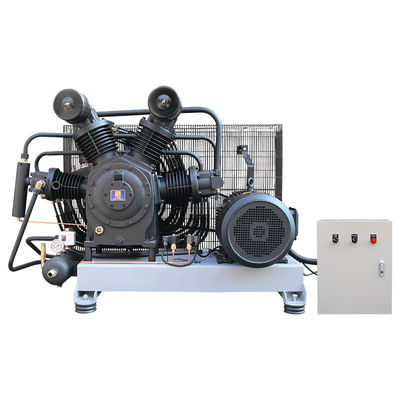

Large Image :  15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection

Product Details:
Place of Origin: zhejiang, China
Brand Name: Shanhai
Certification: ISO9001
Model Number: KRW1.2/60D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$3000-7000/pcs
Packaging Details: wooden box/air column packing
Delivery Time: 3-10 days after the payment
Payment Terms: T/T
Supply Ability: 100pcs per month
Detailed Product Description
Working Pressure: 6.0 Mpa/ 60 Bar Air Compressor Air Delivery: 1.2m3/min, 42cfm
Voltage: 380v/3ph/50hz(or Customized) Power Source: AC Power
Type: Piston,Reciprocating,Stationary Configuration: Stationary
Cooling Method: Air Cooling,Fan Cooling Power: Electric,15KW 20HP
Lubrication Style: Lubricated Warranty: 1 Year
High Light:

Three Stage Piston Air Compressor

,

15kw Piston Air Compressor

,

1.2m3 / Min Piston Air Compressor

High Pressure15kw 20hp 60bar 1.2m3/min Three Stage Piston Air Compressor For Leak Detection

Application

This seires air compressor mainly used for pipeline pressure test of oil exploration,sweeping lines, gas lift and other projects, aswell as membrane nitrogen,heat mining,injecting natural gas for bottom of well,oil and gas ,nationaldefense industry.gas stations,etc., superior performance, high degree of automation.



Also can be used as construction requires displacement of less than 20m3 / min, the exhaustpressure is less than 35MPA gas source or origin station car.





Advantages


>Maximum space saving through compact design. All Nascent componentsare mounted on a common base frame to ensure premium space saving.

>Smooth operation for maximum machine life.Considerable time and engineering goes into the design of the generously dimensioned shock
absorbers and rigid base frame in order to guaranteed minimal vibration.

>Ease of maintenance, best access and user friendliness are all integral to the machine design. Simple operation,simple maintenance and easy adaptation to special requirements saves time and saves money.






MODEL
F.A.D.
PRESSURE
MTR POWER
MTR SPEED
OIL CONTENT
WEIGHT
DIMENSION
m^3/min
BAR
HP/KW
RMP
L
KG
L*W*H (mm)
KRW0.63/60D
0.63
60
10/7.5
600
6
400
1400*710*850
KRW1.0/60D
1.0
60
15/11
660
6
420
1400*710*850
KRW1.2/60D
1.2
60
20/15
800
6
420
1420*710*885
KRW1.35/60D
1.35
60
20/15
800
6
420
1420*710*885
KRW1.6/60D
1.6
60
25/18.5
720
10
610
1460*770*1040
KRW1.7/60D
1.7
60
30/22
750
10
620
1460*770*1040
KRW2.0/60D



2.0
60
30/22
750
10
620
1530*830*1100


15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection 015kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection 115kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection 2





packing&delivery as following:

15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection 3

after -sale as following:

15kw 20hp Three Stage Piston Air Compressor High Pressure 60 Bar 1.2m3 / Min For Leak Detection 4

ATTENTION:

We can change the electric power to 60HZ,220v etc power,we have exported a lot worldwide with matched air dryer,air tank.
