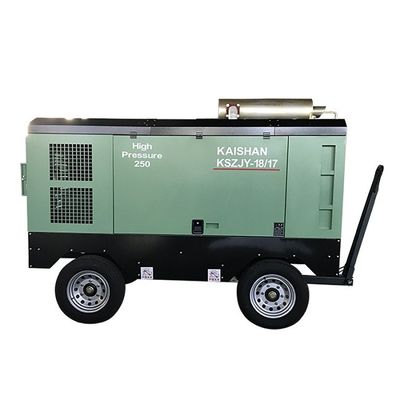

Diesel Engine Portable Screw Air Compressor KSZJ-18/17 195KW For KW180 Water Well Drilling Mahnie

Place of Origin:China
Brand Name:China
Certification:CE
Model Number:KSZJY-18/17
Minimum Order Quantity:1
Price:$10000-20000/pc
Payment Terms:L/C, D/A, D/P, T/T, paypal
Supply Ability:500 sets per month
Product Details
Highlight:

195KW Portable Screw Air Compressor

,

Diesel Air Compressor 195KW

,

KSZJ-18/17 Mobile diesel air compressor
Capacity: 18m3/min Air Compressor
Working Pressure: 1.7Mpa / 17bar
Configuration:: Mobile Diesel Air Compressor
Diesel Engine: Cummins Or Yuchai
Lubrication Style: Oil Lubrication, Water Cooling
Place Of Origin: Zhejiang, China
Delivery Time: 7 Working Days
Warranty: 12 Months
Product Description

Diesel Portable Screw Air Compressor

Silk diesel portable screw air compressor is widely applied in the industries, such as, road, railway, mine, water conservancy, shipbuilding, urban construction, energy and war industry, etc.
Silk-Brand diesel portable screw air compressor is efficient and reliable, with complete varieties. Its power range is 32 -300kW; discharge quantity covers 39m3/min and the discharge pressure is up to 3.5MPa at maximum.

Characteristic of air compressor for water well drilling rig :
1.Low operating sound and less vibration design.Easy serviceability.
2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.
3.High efficient Airend:
Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the
rotate speed is same with the diesel engine's, more longer lifespan.
4.Diesel Engine of Famous Brand:
Select the diesel engine of CUMMINS and YUCHAI brand, satisfy the emission
requirement of Europe, low oil consumption, after sale service system all over China.
5.Good adaptability:
The Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.

Advantages of air compressor for water well drilling rig
1.World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime
2.Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.
3.Conplete protection function with fault alarm and indication
4.Efficient filtering and seperating system.
5.Large oilfter cooler ensures the machines in optimum operation temperature when the ambient temperature
is high.
6.Efficient air-cooled enclosed motor
7.Super low noise.

Model
Pressure
Capacity
Motor Power
Model of Engine
Connector
Mpa
m³/min
KW
KSZJ-15/14.5
1.45
15
118
YC6A180Z-T21
G2*1,G3/4*1
KSZJ-18/17
1.7
18
191
YC6A260L-20
G2*1,G3/4*1
KSZJ-19/18
1.8
19
191
YC6A260L-20
G2*1,G3/4*1
KSZJ-29/23G
2.3
29
288
YC6M400L-K20
G2*1,G3/4*1
KSZJ-31/25-34/17
2.5 (1.7)
31 (34)
404
YC6M400L-K20
G2*1,G3/4*1
KSZJ-34/25
2.5
34
404
YC6K550-K30
G2*2
KSZJ-35/30-38/25
3.0 (2.5)
35 (38)
412
/
G2*1,G3/4*1

Diesel Engine Portable Screw Air Compressor KSZJ-18/17 195KW For KW180 Water Well Drilling Mahnie 0Diesel Engine Portable Screw Air Compressor KSZJ-18/17 195KW For KW180 Water Well Drilling Mahnie 1

Diesel Engine Portable Screw Air Compressor KSZJ-18/17 195KW For KW180 Water Well Drilling Mahnie 2Diesel Engine Portable Screw Air Compressor KSZJ-18/17 195KW For KW180 Water Well Drilling Mahnie 3
