PM VSD Two Stage Variable Speed Screw Oil Free Air Compressor For Medical

Kaishan is a great brand and big factory. As a distributor, we feel content to its quality, service and hope we can go on this win-win relationship.

—— AIREP  S.A.S.

We purchased an energy saving air compressor from Kaishan. kaishan is as good as world famous brand! They have research center in my country

—— Verender (from American)

I'm Online Chat Now

PM VSD Two Stage Variable Speed Screw Oil Free Air Compressor For Medical

PM VSD Two Stage Variable Speed Screw Oil Free Air Compressor For Medical
PM VSD Two Stage Variable Speed Screw Oil Free Air Compressor For Medical PM VSD Two Stage Variable Speed Screw Oil Free Air Compressor For Medical PM VSD Two Stage Variable Speed Screw Oil Free Air Compressor For Medical

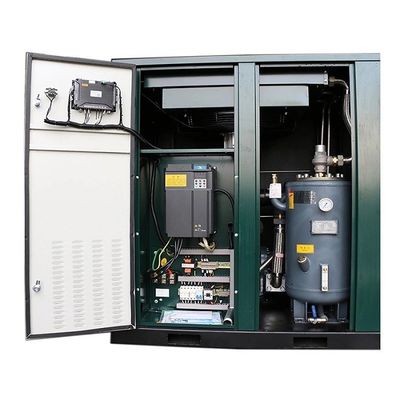

Large Image :  PM VSD Two Stage Variable Speed Screw Oil Free Air Compressor For Medical

Product Details:
Place of Origin: China
Brand Name: Kaishan brand, JN series
Certification: ISO9001,CE
Model Number: PMVFQ15
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8000-20000per set
Packaging Details: 1.plywood cases suitable for sea transportation 2.as customer's requirement
Delivery Time: 3-15 days
Supply Ability: 100set per month
Detailed Product Description
Working Pressure: 0.6-0.9MPa Power: 20HP Rotary Screw Air Compressor
Transmission Way: Direct Driven Type: VSD Screw Air Compressor
Stage: Two Stage Compression Lubrication Style: Oil Injected
Cooling Method: Air Cooling Voltage: 380V 50HZ 3phase (customize)
High Light:

Screw Oil Free Air Compressor

,

Two Stage Industrial Screw Air Compressor

,

20HP rotary VSD Screw air compressor

industrial air compressor suppliers

Kaishan permanent magnet variable frequency air compressor is widely used in food processing, pharmaceutical products, and textile industry and other industrial projects. It has absolute technical advantages in energy saving and environmental protection. Kaishan permanent magnet variable frequency control technology has the following three advantages:



1. The control technology of Kaishan permanent magnet variable frequency screw air compressor is jointly developed by Mr. Lin Huaiyu, a world-renowned permanent magnet frequency conversion control expert, together with a professional company in Switzerland. The patented field weakening control, pressure control and simple and stable permanent magnet motor open loop Control, adapt to a variety of harsh conditions, the system is more stable



2. No rotor position sensor is needed, which simplifies the system and improves the stability of the system. Torque can be compensated at any angle in 360 degrees to achieve perfect torque control. The bus voltage utilization rate is greater than 93%, far exceeding the different inverters on the market.



3. Highly integrated control. The inverter and screw air compressor control system are integrated into one, and the advanced PID control algorithm is adopted to speed up the control speed, improve the control accuracy, and provide customers with more stable air supply pressure.



PMVFQ15 Technical Parameters
Screw set 5:6 toothed rotor
Compression method Continuous/single stage
Exhaust interface P2=0.6-1.0MPa
Cooling method Air cooled
Output temperature 10~15higher than ambient temperature
Amount of lubricant About 15L
Motor speed N=4135-5224r/min
Rated power 15kW/20HP(IP65)
Exhaust volume V=2.37-2.88m3/min
Working weight 380kg
Air temperature upper limit 45
Air temperature lower limit 0
Fuel consumption <2PPM
Noises 68dB(A)
Dimensions

1200x830x1240mm





Model

Working Pressure

(Mpa)

Capacity

(m3/min)

Power

(KW)

Exhaust joint Noise dB(A)

Weight

(KG)

Dimensions(MM)
PMVFQ15 0.6-1.0 2.37-2.88 15 G1 68 380 1200x830x1240

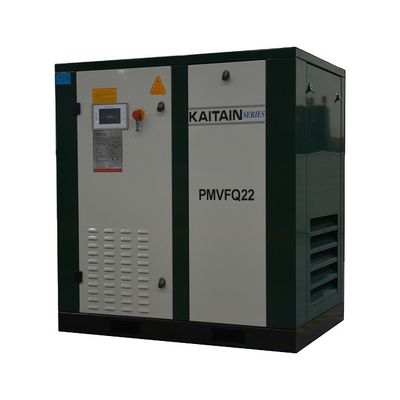

PMVFQ22 0.6-1.0 3.61-4.22 22 G1 68 480 1200x830x1290
PMVFQ37 0.6-1.0 6.28-7.42 37 G1 1/2 69 710 1400x1000x1540
PMVFQ45 0.6-1.0 7.73-9.27 45 G1 1/2 70 990 1500x1160x1700
PMVFQ55 0.6-1.0 9.99-11.95 55

PM VSD Two Stage Variable Speed Screw Oil Free Air Compressor For Medical 0PM VSD Two Stage Variable Speed Screw Oil Free Air Compressor For Medical 1PM VSD Two Stage Variable Speed Screw Oil Free Air Compressor For Medical 2PM VSD Two Stage Variable Speed Screw Oil Free Air Compressor For Medical 3



Customers Benefit

1. A economical and practical machine cansatisfy demand of user from the small power consumption, low price of screw compressor.
2. New generation of low consumption and high efficiency motor , larger starting torque, with SKY Bearing, low noise.
3. Dual nested Optimizer separator elements. reduce fluid carryover to a maximun of 1 ppm.
4. Computer-compatible microprocessor controller has simple graphic illustration of monitored functions
