Oil Less 30kw 40hp Industrial Screw Air Compressor For Textile

Name: Oil Less 30kw 40hp Industrial Screw Air Compressor For Textile
Brand: Kaishan
SKU: BK30-8G
Price: 2500 USD
Availability: InStock
Rating: 4.7 (158 reviews)

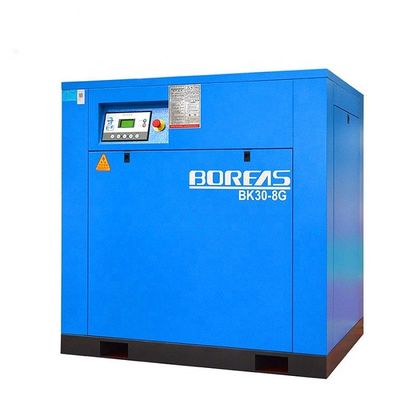

Large Image : Oil Less 30kw 40hp Industrial Screw Air Compressor For Textile

Product Details:

Place of Origin:	China
Brand Name:	Kaishan
Certification:	ISO9001,CE
Model Number:	BK30-8G

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$2500-3200 per set
Packaging Details:	1.plywood cases suitable for sea transportation 2.as customer's requirementcustomer's requirements.
Delivery Time:	2-5 days
Supply Ability:	500set per month

Contact Now

Detailed Product Description

Air Delivery:	5m3/min	Working Pressure:	0.8Mpa
Motor Power:	30kw/ 40HP	Transmission Way:	Direct Driven(no Belt)
OEM:	Acceptable	Lubrication Style:	Oil Less
Configuration:	Stationary	Cooling Method:	Air Cooling
High Light:	30kw industrial screw air compressor , 40hp industrial screw air compressor , oil less textile industrial screw air compressor

Kaishan Supplier BK30-8G direct driven 30kw industrial screw air compressor

The BK series industrial screw air compressor comes configured as belt driven (11kw - 18.5kw), optional gear driven, direct driven(7.5kw - 132kw) with discharge pressures from 0.8MPa to 1.3MPa.

The Design Features of the BK Series:

1) Our single-stage rotary screw air-end is engineered for its durability.Larger rotors allows for bigger bearings,

30%-50% slower rotor speeds results in less power consumption,lower sound levels and reduced maintenance cost.

2) Our one piece bearing housing ensures both rotors are ridgely held by the bearings in proper alignment during transient periods such as machine startups/shutdowns or load changes

SKF bearings and SEALTECH bearing seats are utilized in all air-ends.

3) All of our compressors have the latest inlet valve,air-end air dischange port and oil inlet port design.

4) Lower sound(dBA) emission level than most of our competitors results in less sound pollution.

5) The axial and rotational loadings are supported by different bearings for better stiffness and less transition noise .

6)Simple package design requires only minimum maintenance for optimum performance.

Continuous cooling and circulation of lubricating oil,ensures long air-end operating life.

Oil Less 30kw 40hp Industrial Screw Air Compressor For Textile 0

Oil Less 30kw 40hp Industrial Screw Air Compressor For Textile 1

KAISHAN BK electric fixed screw air compressor
model	working pressure (bar)	capacity (m3/min)	motor power (kw)	dimension (mm)			weight (kg)
model	working pressure (bar)	capacity (m3/min)	motor power (kw)	l	w	h	weight (kg)
BK7.5-8	8	1.2	7.5	800	620	800	200
BK7.5-8G	8	1.2	7.5	800	620	800	200
BK11-8	8	1.7	11	815	720	854	260
BK11-10	10	1.5		815	720	854	260
BK11-13	13	1.2		815	720	854	260
BK11-8G	8	1.7		815	720	854	260
BK15-8	8	2.4	15	880	770	940	310
BK15-8G	8	2.4		880	770	940	310
BK15-10	10	2.2		880	770	940	310
BK15-13	13	1.7		880	770	940	310
BK18-8	8	3	18	1080	880	1235	500
BK18-8G	8	3		1080	880	1235	500
BK18-10	10	2.7		1080	880	1235	500
BK18-13	13	2.3		1080	880	1235	500
BK22-8ZG	8	3.6	22	1080	880	1235	540
BK22-10G	10	3.2		1080	880	1235	540
BK22-13G	13	2.7		1080	880	1235	540
BK30-8G	8	5	30	1120	930	1290	650
BK30-10G	10	4.4		1120	930	1290	650
BK30-13G	13	3.6		1120	930	1290	650
BK37-8G	8	6	37	1240	1030	1435	730
BK37-10G	10	5.5		1240	1030	1435	730
BK37-13G	13	4.6		1240	1030	1435	730
BK45-8	8	7.1	45	1240	1030	1595	820
BK45-10	10	6.5		1240	1030	1595	820
BK45-13	13	5.6		1240	1030	1595	820
BK55-8	8	9.5	55	1540	1200	1470	1200
BK55-10	10	8.5		1540	1200	1470	1200
BK55-13	13	7.4		1540	1200	1470	1200
BK45-8GH	8	7.1	45	1700	1050	1255	970
BK55-8GH	8	10	55	1790	1150	1360	1180
BK75-8GH	8	13	75	2000	1200	1500	1470
BK90-8GH	8	16	90	2000	1200	1500	1520
BK110-8GH	8	20	110	2410	1300	1670	2210
BK132-8GH	8	22	132	2410	1300	1670	2370
BK110-8T	8	20	110	2410	1300	1670	2210
BK132-8T	8	22	132	2410	1300	1670	2370
KS175-8F	8	24	132	1880	1230	1670	1470

Addition:

Compared to the ordinary PM variable frequency screw air compressor,BOREAS PM variable frequency screw air compressors have obvious technological advantages in the three aspects including screw compression unot efficiency,motor efficiency,and control technology.

Industrial Equipment	Pipelines	Oil & Gas	Coating	Plastics
Rubber	Blow Molding	Shipyard	Metallurgy	Printing Service
Power Plants	Oil Refinery Painting	Steel Industry	Mechanical	Color Sorter Machine
Sandblasting	Tobacco Factory	Shoe Factory	Metal Factory	Sugar Factory
Pneumatic Tools	Construction Packing	Railway Head Project	Curry Juice Factory	Silicon Sealant Production Plant
Beverage factory	Automotive Industry	Tire Repair Factory	Furniture Factory	Stamping
	Chili Sauce Factory		Small Workshop

Customers Benefit

1. A economical and practical machine cansatisfy demand of user from the small power consumption, low price of screw compressor.
2. New generation of low consumption and high efficiency motor , larger starting torque, with SKY Bearing, low noise.
3. Dual nested Optimizer separator elements. reduce fluid carryover to a maximun of 1 ppm.
4. Computer-compatible microprocessor controller has simple graphic illustration of monitored functions
