BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency

Kaishan is a great brand and big factory. As a distributor, we feel content to its quality, service and hope we can go on this win-win relationship.

—— AIREP  S.A.S.

We purchased an energy saving air compressor from Kaishan. kaishan is as good as world famous brand! They have research center in my country

—— Verender (from American)

I'm Online Chat Now

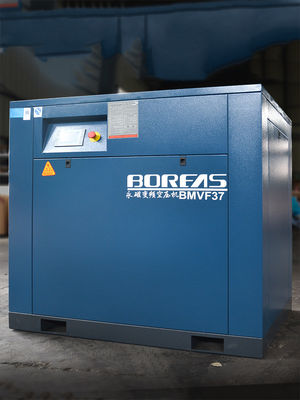

BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency

BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency
BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency

Large Image :  BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency

Product Details:
Place of Origin: China
Brand Name: Kaishan
Certification: ISO9001,CE
Model Number: BMVF37
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1000-8000 per set
Packaging Details: 1.plywood cases suitable for sea transportation 2.as customer's requirementcustomer's requirements.
Delivery Time: 2-5 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 500set per month
Detailed Product Description
Lubrication Style: Oil Injected Working Pressure: 0.65-1.0 Mpa
Transmission Way: Direct Driven OEM: Acceptable
Cooling Method: Air Cooling Type: Screw Air Compressor
Capacity: 5.05-6.35 M3/min Motor Power: 37kw
High Light:

10bar Screw Type Air Compressor

,

37kw Screw Type Air Compressor

,

10bar single phase screw compressor



Kaishan BMVF Permanent Magnet Variable Frequency Screw Air Compressor

Kaishan permanent magnet frequency conversion screw machine is a combination of permanent magnet motor, global frequency conversion integrated control technology and kaishan world leading screw line technology, kaishan strong research and development force to ensure that this is a world leading product!

1. Wider range of speed regulation, higher accuracy of regulation, wider range of air supply pressure and higher energy efficiency.



2. The patented design of weak magnetic control, pressure control and simple and stable permanent magnet motor open-loop control can adapt to a variety of adverse working conditions and make the system more stable.

3. The patented design of weak magnetic control, pressure control and simple and stable permanent magnet motor open-loop control can adapt to a variety of adverse working conditions and make the system more stable.

4, motor and screw host coaxial, higher efficiency.

5,The BMVF series is the screw compressor industry to achieve the screw host, synchronous motor, permanent magnet control electrical control synchronous design, and to achieve the advantages of cooperation.



Technical parameters of BMVF screw air compressor

Model
Exhaust pressure
(mpa)
Discharge volume
(m³/min)
Power
(kw)
Noise
(A)
Weight
(kg)
Outline size
(mm)
BMVF7.5
0.65-1.0
1.0-1.25
7.5
72
170
880*510*800
BMVF11
0.65-1.0
1.5-1.85
11
73
220

1000*670*1090
BMVF15
0.65-1.0
2.05-2.35
15
73
250
BMVF22
0.65-1.0
2.95-3.95
22
74
330
1200*800*1120
BMVF37
0.65-1.0
5.05-6.35
37
76
500
1340*850*1330
BMVF45
0.65-1.0
6.45-8.2
45
78
660

1480*1030*1365
BMVF55
0.65-1.0
8.2-9.85
55
80
710
BMVF75
0.65-1.0
10.5-13.1
75
81
1170

1800*1190*1710
BMVF90
0.65-1.0
12.5-15.5
90
81
1180
BMVF110
0.65-0.8
22
110
82
1770

2700*1230*1730
BMVF132
0.65-0.8
24
132
82
1860
Detailed Images


Screw compressors meet the needs of users in the field of low-power and low-cost screw compressors. It has an efficient screw compression device, an efficient permanent magnet synchronous motor, and first-class permanent magnet variable control technology.BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency 0BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency 1BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency 2BMVF37 Energy Saving Screw Type 10bar Air Compressor Variable Frequency 3
