Mining Rock Water Well 5 Inch DTH Drilling Hammer High Air Pressure

Kaishan is a great brand and big factory. As a distributor, we feel content to its quality, service and hope we can go on this win-win relationship.

—— AIREP  S.A.S.

We purchased an energy saving air compressor from Kaishan. kaishan is as good as world famous brand! They have research center in my country

—— Verender (from American)

I'm Online Chat Now

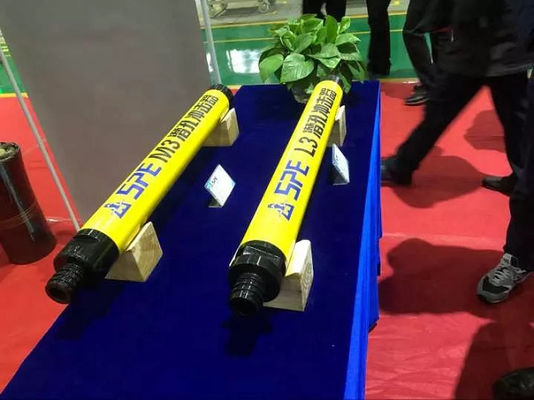

Mining Rock Water Well 5 Inch DTH Drilling Hammer High Air Pressure

Mining Rock Water Well 5 Inch DTH Drilling Hammer High Air Pressure
Mining Rock Water Well 5 Inch DTH Drilling Hammer High Air Pressure

Large Image :  Mining Rock Water Well 5 Inch DTH Drilling Hammer High Air Pressure

Product Details:
Place of Origin: China
Brand Name: kaishan
Certification: ce, ISO9000
Model Number: 5" DTH hammer
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100-700 per unit
Packaging Details: 1,simple packing 2,Export standard package
Delivery Time: in stock
Payment Terms: L/C, T/T, D/A, Western Union
Supply Ability: 5000 sets per week
Detailed Product Description
Drill Diameter: 76-250mm Drilling Depth: 300m,130m,0-100m
Machine Type: Drilling Tool,Drilling Equipment Processing Type: Forging,Casting
Power Type: Pneumatic Drill Hammer Power(w): Matche Power
Application: Mining,Mining Or Marble Quarry Or Water Well Drilling,Tunnel,Water Wells,Drilling Equipment Material: Carbon Steel,Carbide,Alloy Steel,Stainless Steel,42CrMo
High Light:

5 Inch DTH Drilling Hammer

,

Water Well DTH Drilling Hammer

,

High Air Pressure DTH Drilling Hammer

High air pressure DTH hammer mining rock water well drilling 5 Inch DTH drilling hammer

FEATURES
With professional manufacturing experience in DTH hammer production, our factory can supply you with high pressure and medium to low pressure DTH hammers. It strictly matches with API standard and other Chinese industry standards.It is durable for being produced with advanced craftwork and good material.


It also has the following advantages:
1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.
2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.
5. Interchangeable with DTH bit and drill pipe.





Working Pressure
1.0-2.5 Mpa
Hole Range
76-130 mm
Diameter
99.5 mm
Weight
40 kg
Length
985 mm
Rotation Speed
22-35 RPM
Impact Rate 1.7 Mpa
31 Hz
Air Consumption
1.0Mpa: 6m3/min;
1.8Mpa: 10m3/min;
2.4Mpa: 15m3/min



Mining Rock Water Well 5 Inch DTH Drilling Hammer High Air Pressure 0Mining Rock Water Well 5 Inch DTH Drilling Hammer High Air Pressure 1

Mining Rock Water Well 5 Inch DTH Drilling Hammer High Air Pressure 2



Mining Rock Water Well 5 Inch DTH Drilling Hammer High Air Pressure 3
