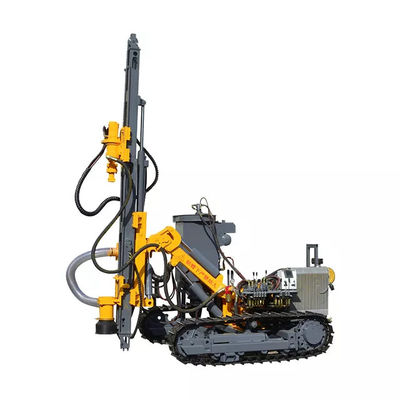

Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310

Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310
Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310 Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310 Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310 Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310

Large Image :  Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310

Product Details:
Place of Origin: Zhejiang province, China
Brand Name: Kaishan
Certification: ISO9001,CE
Model Number: KG310/KG310H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $12000 -19000 / Set
Packaging Details: Nude packing or as per customer's request, suitable for long transportation.
Delivery Time: 10-30 days
Supply Ability: 10 set per month
Detailed Product Description
Model: Down The Hole Drilling Rig Drilling Diameter: 80-115mm Hole
Push Way: Motor.Chain Drill Bit: Φ90,Φ100, Φ110 Low Pressure Bit
Drilling Depth: 20-25m Usage: Coal,Ore,Drill Holes,drill Rock
Engine: Diesel Engine,Diesel Power Name: Used Borehole Drilling Machine For Sale
High Light:

Bore Hole Hydraulic Rotary Drilling Rig

,

Hydraulic Rotary Drilling Rig

Kaishan KG310 Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Uses

Easy Operation 20m Depth Rock Hydraulic Earth Mining Drilling Machine

The KG310 / KG310H down the hole drlll rig for open use is an improved device in compllance with national regulations on environmental protection. Equipped with the Yuchai double-Cylinder engine ( Chlna Ⅲ) , the drill rig meets the national standards for emissions and environment. The flexible derricking mechanism is suitably qualifued for horizontal drilling at a low level. The hydraulic system has been improved , leading to increased system flow and rotary speed. Moreover, the hydraulic cylinder has been optimized, thus making it more reliable; and the additional ring ( plate ) makes handling and lifting easier.
Model
KG310
KG310H
Weight
6800kg
4200KG
Size of drill machine
6800 * 2200 * 2850 mm
4650 * 2500 * 2200 mm
Diameter of hole
Φ80-105mm
Optium drilling depth
20m
Rotation speed
0-120r/min
rotation torque
1250N·m
Lift power
18000N
Feed way
oil cylinder-chain
Feed distance
2670mm
Walk speed
0-2.0Km/h
Gradeability
≤30°
Ground clearance
250mm
Swing angle of boom
Left 100°, right 45°, total 145°
Pitch angle of drill boom
Down 145°, up 55°, total 195°
Sliding carriage suppling length
900mm
Power
Yuchai Power YCCA1336-45(33.1KW 2400R/min)
Drill rod
Φ60x2mm
Air consumption
7-15m³/min
Recommand air compressor
LGCY-12/10 , LGCY13/13
Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310 0Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310 1
  • Easy Used Control Panel
    Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310 2
  • High torque gyrator

    Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310 3

  •



  • Stable hydraulic system
    Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310 4
  • Steel track adaptable to all terrains
    Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310 5

Techincal parameter





Pneumatic Blast Bore Hole Hydraulic Rotary Drilling Rig For Mine Kaishan KG310 6
