Product Details:
Payment & Shipping Terms:
|
| Type: | Vertical Type Or Horizontal Type | Name: | Air Tank |
|---|---|---|---|
| Usage: | Air, Nitrogen Or Vacuo | Pressure: | 8 Bar, 10 Bar, 20 Bar, 30 Bar, 40 Bar |
| Volume: | 0.3m3, 0.6m3, 1m3, 1.5m3...10m3 | Warranty: | 10 Years |
| Certification: | CE,ISO | Application: | Store Air,General Industry,Air Compressor,for Any Field Nailer Gun,Etc |
| High Light: | 3000L Vertical Air Receiver Tank,High Pressure 1500L Air Receiver Tank,600L Air Compressor Gas Storage Tank |
||

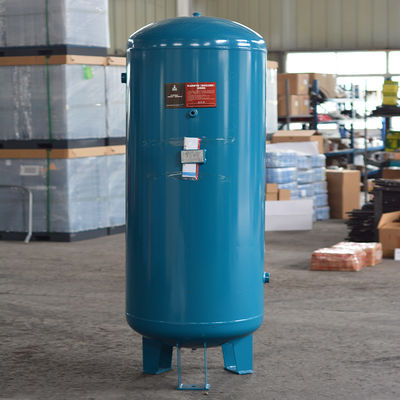

600L 1500L 2000L 3000L high pressure vertical air receiver tank for air compressor gas storage tank for air compressor
1. Types: storage tank, air storage tank, vertical storage tank, horizontal storage tank, stainless steel storage tank and so on.
2. Materials: stainless steel,
Technical parameters of Pressure Vessel Series
| Model | Volume (m3) |
Working pressure (bar) |
Total Height (mm) |
Inside diameter (mm) |
Net weight (KG) |
| 0.3/8 | 0.3 | 8 | 1560 | 550 | 92 |
| 0.3/10 | 10 | 1562 | 112 | ||
| 0.3/13 | 13 | 1564 | 168 | ||
| 0.3/16 | 16 | 1564 | 156 | ||
| 0.3/25 | 25 | 1568 | 195 | ||
| 0.3/30 | 30 | 1568 | 195 | ||
| 0.3/40 | 40 | 1572 | 262 | ||
| 0.5/8 | 0.5 | 8 | 2063 | 600 | 655 |
| 0.5/10 | 10 | 2063 | 655 | ||
| 0.5/13 | 13 | 2067 | 657 | ||
| 0.5/16 | 16 | 2067 | 657 | ||
| 0.6/8 | 0.6 | 8 | 1844 | 700 | 170 |
| 0.6/10 | 10 | 1846 | 196 | ||
| 0.6/13 | 13 | 1846 | 305 | ||
| 0.6/16 | 16 | 1846 | 240 | ||
| 0.6/25 | 25 | 1850 | 280 | ||
| 0.6/30 | 30 | 1855 | 372 | ||
| 0.6/40 | 40 | 1859 | 410 | ||
| 1.0/8 | 1.0 | 8 | 2240 | 800 | 226 |
| 1.0/10 | 10 | 2242 | 262 | ||
| 1.0/13 | 13 | 2340 | 271 | ||
| 1.0/16 | 16 | 2343 | 325 | ||
| 1.0/25 | 25 | 2351 | 490 | ||
| 1.0/30 | 30 | 2355 | 576 | ||
| 1.0/40 | 40 | 2355 | 582 | ||
| 1.5/8 | 1.5 | 8 | 2357 | 1000 | 338 |
| 1.5/10 | 10 | 2357 | 338 | ||
| 1.5/13 | 13 | 2359 | 388 | ||
| 1.5/16 | 16 | 2363 | 498 | ||
| 1.5/25 | 25 | 2368 | 630 | ||
| 1.5/30 | 30 | 2372 | 735 | ||
| 1.5/40 | 40 | 2380 | 1050 | ||
| 2.0/8 | 2.0 | 8 | 2692 | 1100 | 460 |
| 2.0/10 | 10 | 2692 | 460 | ||
| 2.0/13 | 13 | 2694 | 505 | ||
| 2.0/16 | 16 | 2698 | 660 | ||
| 2.0/20 | 20 | 2702 | 815 | ||
| 2.0/25 | 25 | 2706 | 998 | ||
| 2.0/40 | 40 | 2719 | 1470 | ||
| 2.5/8 | 2.5 | 8 | 2776 | 1200 | 846 |
| 2.5/10 | 10 | 2778 | 847 | ||
| 2.5/13 | 13 | 2782 | 850 | ||
| 2.5/30 | 30 | 2795 | 856 | ||
| 3.0/8 | 3.0 | 8 | 2807 | 1300 | 521 |
| 3.0/10 | 10 | 2809 | 621 | ||
| 3.0/13 | 13 | 2813 | 787 | ||
| 3.0/16 | 16 | 2817 | 1031 | ||
| 3.0/35 | 35 | 2834 | 1755 | ||
| 3.0/40 | 40 | 2838 | 2243 |
*Kaishan pressure vessels have been sold all over the country as well as America,Canada,Russian,Mexican,East Asia,AND Africa ect.The diameter of pressure vessel is from 600mm-1800mm. The design temperature of pressure vessel is 150℃.
Air receiver tanks are essential to compressed air systems, as they allow the system to perform efficiently. They also serve as temporary storage. The tanks enable you to use air when the compressor is not running. Apart from this, they also supply additional air to the system during periods of high usage.
As an authorized distributor of Kaishan, we offer some of the highest quality ring-coated storage tanks on the market today. We have gas tanks that can meet any need. If you are not sure which size is right for you, our plant's system experts will advise you and help you determine the gas tanks you need.
