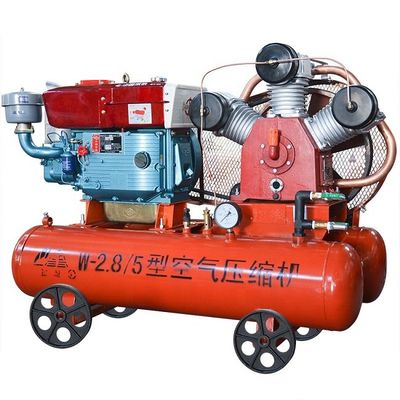

Kaishan 22hp Diesel Reciprocating Mining Air Compressor For Pneumatic Jack Hammer

Kaishan 22hp Diesel Reciprocating Mining Air Compressor For Pneumatic Jack Hammer
Kaishan 22hp Diesel Reciprocating Mining Air Compressor For Pneumatic Jack Hammer Kaishan 22hp Diesel Reciprocating Mining Air Compressor For Pneumatic Jack Hammer Kaishan 22hp Diesel Reciprocating Mining Air Compressor For Pneumatic Jack Hammer

Large Image :  Kaishan 22hp Diesel Reciprocating Mining Air Compressor For Pneumatic Jack Hammer

Product Details:
Place of Origin: Zhejiang, China
Brand Name: kaishan
Certification: ce
Model Number: W-2.8/5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $600-1300 per unit
Packaging Details: export wooden case
Delivery Time: 3-10 days after the payment
Payment Terms: Western Union, T/T, L/C
Detailed Product Description
Product Name: Air Compressor With Jack Hammer Application: Mining,Drilling Operations; Hydroblasting; Cable Blowing And So On,Mine
Capacity: 2.8m3/min Working Pressure: 5 Bar Air Compressor
Power Source: Diesel Engine Air Compressor Type: Piston Type
Configuration: Portable Type Lubrication Style: Oil-less
High Light:

Diesel Reciprocating Air Compressor

,

22hp Mining Air Compressor

,

Pneumatic Jack Hammer Mining Air Compressor

Hot Sale W-2.8/5 Mining Diesel Engine rock drill air compressor

1.Energy saving design;

2.Reliable and good stability;

3.Low noise running;

4.Excellent air supply ability;

5.Simple struction,easy to maintenance;

6.Famous brand spare parts;

7.Easy operating and maintenance;

8.Simple structure,light weight,easy to move;

9.Reliable plate and spring strip: be made of special steel from Sweden;

10.Piston ring: excellent flexibility,lowest lubricating oil consumption;

11.Cylinder: made of boron cast iron,suitable for dust condition;

12.Cylinder cover: extrusion process adopted,good heat emissio;

13.Crankshaft: made from ductile cast iron,moren reliable.



This movable piston air compressor is widely used in mine, geology ,construction,transportation, textile, machinery, car manufacture and repair industries. with the strength of high-efficiency, high pressure, high-reliability, low oil combustion, and long life for use, it makes the mine works more easy and convenient.



For the matched power ,you could choose diesel engine or motor.



Model W-2.8/5
Exhaust Volune 2.8 m3/min
Exhaust Pressure 0.5 Mpa
Cylinder(Dia.x Qty) 115x3
Diesel Engine/Power S1115,22HP
Air tank 200L
Dimension 1780X870X1240mm
Weight 550kg


Features

1.Special designed is made in heat emission and air flow .

2.The piston ring imported from Japan is durable and sealable.

3.Special oil separation construction, so no oil vents form the breather valve.

4.Crankshaft undergoes high-frequency hardening ,which enables it especially abrasion-proof.

5.Strongly power driven and big air end with design, more suitable in the continuous operation.

6.The core of air filter is made of imported filter paper,which acts well in filtering and silencing of noise.

7.Some relevant working unites are received precision balance, which makes more stable with lower noise.



Kaishan 22hp Diesel Reciprocating Mining Air Compressor For Pneumatic Jack Hammer 0Kaishan 22hp Diesel Reciprocating Mining Air Compressor For Pneumatic Jack Hammer 1



Kaishan 22hp Diesel Reciprocating Mining Air Compressor For Pneumatic Jack Hammer 2

Kaishan 22hp Diesel Reciprocating Mining Air Compressor For Pneumatic Jack Hammer 3Kaishan 22hp Diesel Reciprocating Mining Air Compressor For Pneumatic Jack Hammer 4
