Product Details:
Payment & Shipping Terms:
|
| Quality: | Comparable With Atlas Copco | Power Source: | AC Power 380V 50hz |
|---|---|---|---|
| Capacity: | 3.0m3/min | Working Pressure: | 8Bar/116psi |
| Cooling: | Air-cooling | ||
| High Light: | rotary screw air compressor,screw type air compressors |
||
Features :
1.screw air compressor
2.IEC high quality motor
3.Series control protection system
4.Low rotation,low vibration
5..Energy-saving
6.Computer automatic control and protection system
7.the best Capacity control
8.Screw Air Compressor Characteristics:
9.IEC high quality motor
10.Series control protection system
11.Low rotation,low vibration and low sound
12.Easy maintenance .

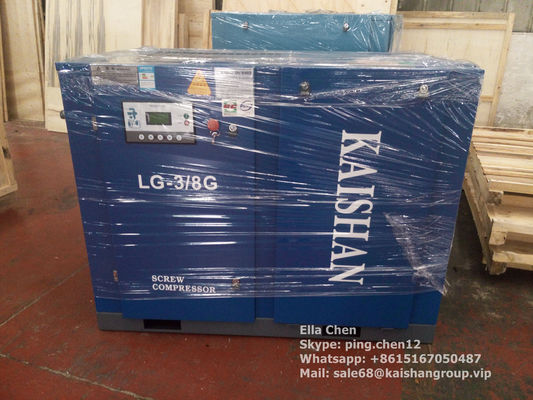

| Model | LG-3/8G |
| Air displacement | 3 m3/min (106CFM) |
| discharge pressure | 0.8Mpa / 116PSI |
| Air supply temperature | ≤ environment temperature +10 °C |
| Motor power | 18.5KW/25HP |
| Voltage | 350V/380 V/400V/420V etc |
| Connector | G1 |
| type of cooling | Air-Cooled |
| weight | 600KGS |
| size(L*W*H) | 1420*850*1110mm |
Economic running costs
Capacity,0-100% ajustment stepless. When the gas consumption is reduced, the capacity decreases, following motor current is also reduced; without consumpation, air compressor is running without capacity, if this status keeps for a long time,compressor automatically shut down. While air consumption increases, compressos recovers. Energy-saving effect is optimal.
Good environmental adaptability
Extraordinary cooling system design, especially for the Asian high-temperature, high humidity environment. Excellent vibration isolation and noise reduction measures, so that the installation of our screw compressor no need for a dedicated basis, only to leave a minimum ventilation and maintenance space, you can settle your compressor.
