Product Details:
Payment & Shipping Terms:
|
| Power Source: | Diesel | Certification: | Mining Certifcate,CE,ASME |
|---|---|---|---|
| Lubrication Style: | Oil Less | Type: | Screw |
| Transmission Way: | Direct Driven | Condition: | New Machine |
| High Light: | portable rotary screw air compressor,mobile air compressor |
||

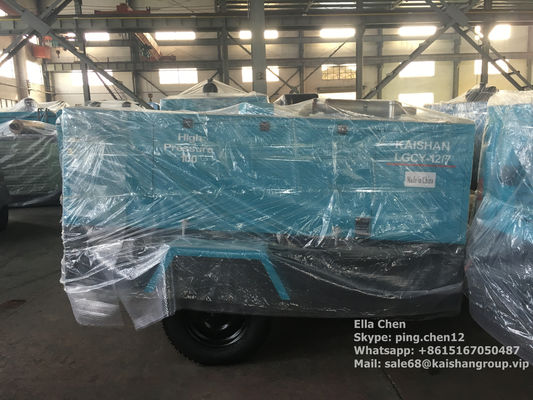

portable diesel screw air compressor (kaishan LGCY-12/7)
Products Descriptions:
1. Vibration isolation mount technology ensure smooth and quiet operation
2. Multi-auto alarm associate high temperature shut down protection system
3. Easy to maintain with off the shelf parts
4. Easy to operate with detail instruction manual
5. Top grade diesel engines are used to ensure minimal emission to environment
Products Details:
1. Diesel powered portable screw air compressor: power:37-300kw, air delivery: 26m3/min, exhaust pressure: 2.2MPa, 6 categories
2. Air end: large diameter rotor, air end connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engines’, more longer lifespan
3. Diesel engine: select the diesel engine of COMMINS and YUCHAI brand, satisfy the emission requirement of Europe, low oil consumption, after sale service system all over the china
Technical Datas:
| Model No. | LGCY-12/7 |
| Capacity (m3/min/ CFM) | 12/424 |
| pressure (bar/psig) | 7/102 |
| Fluid capacity (L/gallon) | 35/9.5 |
| Compression stage | single |
| Engine model No. | 4BTA3.9-C125 |
| Rated Power(KW/HP) | 93/125 |
| Dimension(mm) | 3900*1980*1900 |
| Weighht(kg) |
2050 |
Our advantages:
1. KAISHAN is the only manufacturer in china which is able to mass produce the motor powered and diesel powered portable screw air compressor, breaking the monopoly of foreign brand in the screw air compressor.
2. Good adaptability: automatically control the air delivery of diesel engine by matching the demand of air consumption, which equal to frequency conversion control in motor power screw air compressor
3. Operation parameter is straightforward, with multiple warning and shut down protection device
