3 Phase 50hz 22kw 10 Bar 30 Hp Belt Screw Drive Air Compressor Single Stage

3 Phase 50hz 22kw 10 Bar 30 Hp Belt Screw Drive Air Compressor Single Stage
3 Phase 50hz 22kw 10 Bar 30 Hp Belt Screw Drive Air Compressor Single Stage 3 Phase 50hz 22kw 10 Bar 30 Hp Belt Screw Drive Air Compressor Single Stage

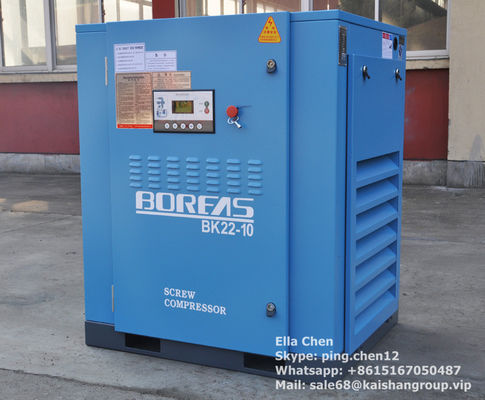

Large Image :  3 Phase 50hz 22kw 10 Bar 30 Hp Belt Screw Drive Air Compressor Single Stage

Product Details:
Place of Origin: China
Brand Name: kAISHAN
Certification: CE,ISO9001
Model Number: BK22-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1500-2000 per set
Packaging Details: 1.plywood cases suitable for sea transportation 2.as customer's requirementcustomer's requirements.
Delivery Time: 3-7 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month
Detailed Product Description
Screw Airend: Single Stage Driving Mode: Belt Driven
Motor Power: 10 Bar Configuration: Stationary
Type: Screw
High Light:

screw drive air compressor

,

rotary screw air compressor

Instrustion:


The Boreas(BK) series compressor represent a giant leap in design and performance with each component designed for reliability and ease of maintenance. The compressor is manufactured in compliance with applicable international standards CE,IAF and others and designed as per the international quality standards. These new generation compressor significantly reduce operating costs and provide cost savings with fast return on investment.

The BK series industrial screw air compressor comes configured as belt driven (11kw - 18.5kw), optional gear driven, direct drven(7.5kw - 132kw) with discharge pressures from 0.8MPa to 1.3MPa.



And can variable frequency.



Packaging:

wooden package with shakeproof material3 Phase 50hz 22kw 10 Bar 30 Hp Belt Screw Drive Air Compressor Single Stage 0



Specification for screw air compressor
Model
BK22-8G
BK22-8
BK22-10
BK22-13
Transmission way
Direct driven
Belt driven
Belt driven
Belt driven
Exhuast Volune
3.6m3/min(126cfm)
3.6m3/min(126cfm)
3.2m3/min(112cfm)
2.7m3/min(95cfm)
Working Pressure
0.8Mpa/8Bar/116Psi
0.8Mpa/8Bar/116Psi
1.0Mpa/10Bar/145Psi
1.3Mpa/13Bar/190Psi
Motor power
22kw
22kw
22kw
22kw
Connector
G1
G1
G1
G1
Noise
74
74
74
74
Weight
560
540
540
540
Dimension (L*W*H)
1410*850*1120(mm)
1080*880*1235(mm)
1080*880*1235(mm)
1080*880*1235(mm)



Main Features

Fully seal & double screw,dual shockproof,smooth operation,can be installed anywhere.


♦ With a exquistie shape and compact structure and cover a small area.


♦ Large displacement,stable pressure and high efficiency.


♦ Low exhause temperature (only 7 °C~10°C higher than the ambient temperature)


♦ Safe,liable,smooth operation,little noise and long maintenance cycle and using life.


♦ The intelligent control system completely satisfy the continuous cooperation without man work.


♦ Many screw air compressors operate together and start or shut down automatically according to the air amount,and no man-work is needed.


♦ It is more energy saving for a single compressor can adjust air demand automatically according to the users' air amount(frequency conversion type).


♦ The degree of tightness of the belt can be auto-matched with the flexible belt. Through adjusting the tensility, the loss of the pressure and efficiency can be reduced to the lowest point and increase the time efficiency of pressing.



♦ Narrow belt has higher transmission power with efficency of about 98%.the structure can reduce internal heat and prevent aging. It enjoy Longer service life and much lower stretch ability.

Economic operation

The system adopts stepless capacity regulation of 0-100%. When the gas consumption is reduced, exhaust volume decreases, the motor current decreases at the same time; when no gas, air compressor run empty, empty for too long the automatic shutdown. When the gas consumption increases, the resumption of heavy truck. Energy-saving effect is optimal.


Good environment adaptability
Design of cooling system of extraordinary, especially suitable for high temperature, high humidity environment in asia. Vibration and noise reduction measures excellent, make Kaishan brand screw air compressor installation without special foundation, just leave the minimum ventilation and maintenance space, can arrange your compressor.
