Product Details:
Payment & Shipping Terms:
|
| Color: | Blue | Configuration: | Stationary |
|---|---|---|---|
| Driven Type: | Direct Driven | OEM: | Acceptable |
| Application: | Compress Air For Industrial Use | Cooling Method: | Air Cooling |
| High Light: | rotary screw air compressor,screw type air compressors |
||

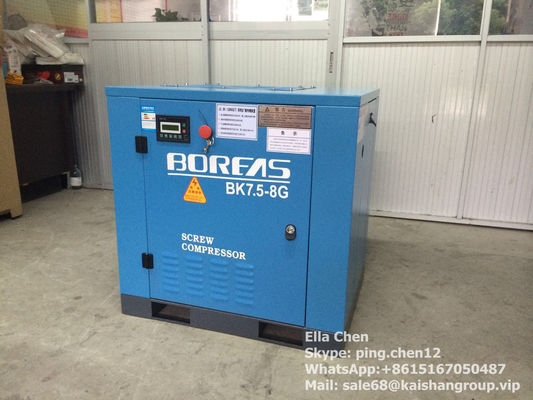

Kaishan brand BOREAS series stationary screw air compressor
Main Features of BK series air screw compressors
1. The built-in oil-separation system:
Using built-in oil-separation design, to ensure that the oil and gas separation effect, reduce the fuel consumption, the product quality from the beginning of the design have sufficient security.
2. High efficiency air inlet valve:
ON/OFF control method
The non-return valve avoid spray oil design
3. A new generation of low power high efficiency motor:
Starting torque big
Insulation class F class, with IP54 protection grade
SKF bearing, low noise, long service life
A refueling device, don't stop also can add oil.
4. Humanized human-computer interface display control system:
Very convenient, simple operation
Running state be clear at a glance
In the unattended under the condition of the 24 hours to work for you
Abnormal factors once appear, prompt maintenance or repair immediately
Leave spare output interface, can achieve more units chain control and remote diagnosis control
| Model | Capacity (FDA) | Working pressure | Power | Net weight | Dimension |
| (M3/min) | (MPa/Bar) | (KW/HP) | (KG) | (mm) | |
| BK11-8 | 1.7 | 0.8/8 | 11/15 | 370 | 1020*820*1235 |
| BK11-10 | 1.5 | 1.0/10 | |||
| BK11-13 | 1.2 | 1.3/13 | |||
| BK15-8 | 2.4 | 0.8/8 | 15/20 | 380 | 1020*820*1235 |
| BK15-10 | 2.2 | 1.0/10 | |||
| BK15-13 | 1.7 | 1.3/13 | |||
| BK18-8 | 3 | 0.8/8 | 18/25 | 500 | 1080*880*1235 |
| BK18-10 | 2.7 | 1.0/10 | |||
| BK18-13 | 2.3 | 1.3/13 | |||
| BK22-8 | 3.6 | 0.8/8 | 22/30 | 540 | 1080*880*1235 |
| BK22-10 | 3.2 | 1.0/10 | |||
| BK22-13 | 2.7 | 1.3/13 | |||
| BK30-8 | 5 | 0.8/8 | 30/40 | 650 | 1120*930*1290 |
| BK30-10 | 4.4 | 1.0/10 | |||
| BK30-13 | 3.6 | 1.3/13 | |||
| BK37-8 | 6 | 0.8/8 | 37/50 | 730 | 1240*1030*1435 |
| BK37-10 | 5.5 | 1.0/10 | |||
| BK37-13 | 4.6 | 1.3/13 | |||
| BK45-8 | 7.1 | 0.8/8 | 45/60 | 820 | 1240*1030*1595 |
| BK45-10 | 6.5 | 1.0/10 | |||
| BK45-13 | 5.6 | 1.3/13 | |||
| BK55-8 | 9.5 | 0.8/8 | 55/75 | 1200 | 1540*1200*1470 |
| BK55-10 | 8.5 | 1.0/10 | |||
| BK55-13 | 7.4 | 1.3/13 |
Our small low price electric motor driven screw air compressor for sale now.
Power range: 11KW, 15KW, 18KW, 22KW, 30KW, 37KW, 45KW, 55KW, 75KW, 110KW.
Working pressure: 8bar, 10bar and 13bar
The products provided by us is of 1 year warranty, and on-line service will be supplied by us in time whenever you have any problem or question about the products you want to purchase or have purchased from us.
