Product Details:
Payment & Shipping Terms:
|
| Configuration: | Portable | Weight: | 2380kg |
|---|---|---|---|
| Lubrication Style:: | Lubricated | Warranty:: | 1 Year |
| Color: | Blue | Dimension: | 3970*1940*2350MM |
| Diesel Engine: | YC6B150Z-K20 | Mute: | No |
| High Light: | portable rotary screw air compressor,mobile air compressor |
||

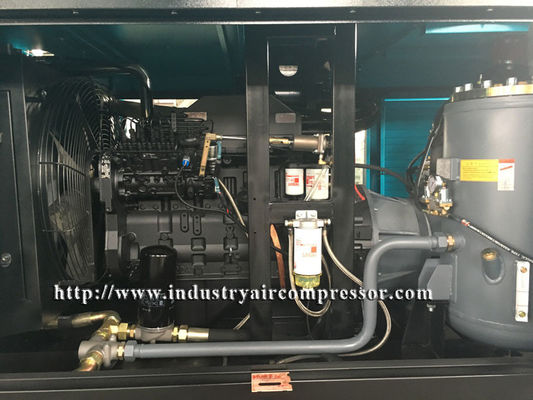

CE Energy Saving Portable Diesel Engine Driven Air Compressors For Drilling Rig
1.On sale 5% off
2.Delivery in time
3.oversea service are available
Specification
LGCY 13/13 Portable Rotary Screw Air Compressor
| model | LGCY-13/13 |
|
Air compressor
|
|
| Air delivery( m3/min) | 13 |
| Working pressure( Mpa) | 1.3 |
| Weight(kg) | 2750 |
| Size(mm) | 3450×1520×2220 |
| Tire Size*Qty | 6.50-16×4 |
|
Diesel engine
|
|
| manufacturer | Cummins |
| model | 6BTA5.9-C180 |
| type | Screw type |
| Method of air suction | Pressurize med-cool |
| diameter *stroke * number of cylinders | 102×120×6 |
| Exhauste volume of piston(L) | 5.9 |
| rated speed(r/min) | 1800 |
| Unloading speed(r/min) | 1400 |
| rated power kW(HP) | 132(180) |
| diesel cubage (L) | 16.4 |
| fuel cubage(L) | 150 |
| electrical system voltage (v) | 24 |
| compressor | |
| No of compression stage | 1 |
| Compressor oil capacity(L) | 36 |
| air supply valve |
G2*1 G3/4*1 |
About Kaishan Portable Screw Air Compressor
LGCY Series Portable Screw Air Compressor are designed for a variety of segments like abrasive sandblasting, construction and mining
where they are used to drive heavy pneumatic tools like jack hammer, pavement breaker, chipping hammer, pneumatic pumps etc.
·Ideal for tropical temperatures
·Air filtration system with vacuum indication for dust environments
·Compressor oil and engine coolant coolers to optimize performance and extend engine life
·Efficient compressor oil filter
·Fuel filter with water separator
·Easy to remove, translucent PE fuel tank
1.Features of screw type air compressor
1, Well-known screw compressor end
2, Interactive control system
3, Imported filtration system
4, Imported air capacity control system
2.Application for screw type air compressor
Screw air compressors are widely used in highways, railways, mining, water conservancy,shipbuilding, urban construction, energy, military, and other industries.
3. Advantages
1.World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime
2.Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.
3.Conplete protection function with fault alarm and indication
4.Efficient filtering and seperating system.
5.Large oilfter cooler ensures the machines in optimum operation temperature when the ambient temperature
is high.
6.Efficient air-cooled enclosed motor
7.Super low noise.
Main Products
Stationary Type:
1.Electromotor Powered Screw Air Compressor: 28~2543 cfm, 116~189 psi g, 10~544 HP.
2.Diesel Driven Screw Air Compressor: 212~1377 cfm, 102~508 psi g, 79~857 HP.
3.Electromotor Powered Reciprocating Air Compressor: 2.8~170 cfm, 116~580 psi g, 1~102 HP.
4.Diesel Driven Reciprocating Air Compressor: 48~459 cfm, 73~102 psi g, 15~102 HP.
Movable Type:
1.Diesel Driven Screw Air Compressor: 212~1377 cfm, 102~508 psi g, 79~857 HP.
2.Electromotor Powered Screw Air Compressor: 28~2543 cfm, 116~189 psi g, 10~544 HP.
3.Electromotor Powered Reciprocating Air Compressor: 2.8~170 cfm, 116~580 psi g, 1~102 HP.
4.Diesel Driven Reciprocating Air Compressor: 48~459 cfm, 73~102 psi g, 15~102 HP.
