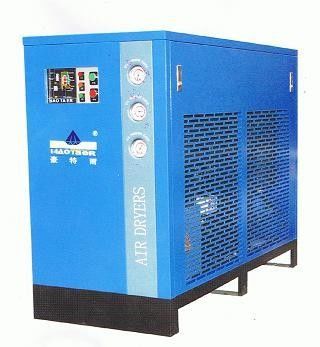

Large capacity blue refrigerated compressed air dryer low noise 220V 3.8m³/min

Large capacity blue refrigerated compressed air dryer low noise 220V 3.8m³/min
Large capacity blue refrigerated compressed air dryer low noise 220V 3.8m³/min

Large Image :  Large capacity blue refrigerated compressed air dryer low noise 220V 3.8m³/min

Product Details:
Place of Origin: China zhejiang
Brand Name: Xufeng
Certification: ISO:9001:2000,
Model Number: XF-3F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden package/as customer requirements
Delivery Time: 7days after receiving
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000sets per month
Detailed Product Description
Configuration:: Portable Power Source: AC Power
Lubrication Style: Lubricant Place Of Origin: Zhejiang Of China
High Light:

refrigeration air dryer

,

refrigeration dryer for compressed air

XF3F high pressure air compressor refrigerated compressed air dryer



Place of Origin:

Zhejiang China (Mainland)

Brand Name:

Xufeng

Model Number:

XF-3F

Power source

AC POWER

Lubrication Style:

Yes

Name

Air Dryer

Color

Blue





Minimum Order Quantity:

1

Packaging Details:

Wooden case

Delivery Time:

7-15 days after received your payment

Payment Terms:

T/T

Supply ability:

1000 Set/Sets per Year

Certificate

ISO:9001:2000,





Quick Detail:

Capacity: 3.8m³/min

Power Supply: 220V

Conn.: ZG1”Dimensions LxWxH:850x500x970

Weight(KG): 105

Standard Working Conditions

Air inlet temperature     ≤80°C

Ambient Temperature   ≤40°C

Working Pressure       10 bar

Dew point : 3-10°C      Refrigerant: R22





5. Flow chart



1, Heat exchanger

2, Evaporator

3, Gas/Liquid separator

4, Jam-prevent drain filter

5, Manual draining valve

6, Refrigerated compressor

7, Aspirating filter

 8,Vaporization

 9, Separator

10, Gas/Liquid mixer

11,Thermal expansion valve

12, View monitor

13, Dry filter

14,Tank

15, Hot gas by-pass valve

16, Water adjustable valve

17, WaterFilter

18, Condenser(Air-cooling)

19, Condenser(Water-cooling)

 20, Pre-cooler(Water-cooling)

21, Pre-cooler(Air-cooling)

 22, Auto-drainer



6 Features

1. Constant dew point temperature

2. Stable performance for long time running

4. External type drain for easy maintenance

4. Low pressure drop for energy saving purpose



7 Option

1. Environmentally friendly refrigerant, such as R407C and R134A, R404A

2. Dew point indicator

3. High pressure indication for small air dryer

4. Pre filter and after filter installed

5. Higher ambient temperature

6. PLC controller



8 Design characteristics
Refrigerated & air system is accurate calculated by professional designing engineer, keep 20% capacity.
Pipeline is made from inner zincification. You can choose working pressure during 0.3~4.5Mpa.
Stainless steel pipeline, it's suitable for medicine, food stuff, acid-resistant, alkaline-resistant and erodent-resistant industry.
Ripple pipeline of both internal and external of the heat exchanger to increase the using rate of cooling air, adverse current structure, perfect returning temperature and it won't freeze.
Evaporator is made from laminose copper pipeline with aluminum flake, high efficiency of heat exchanging of the perfect structure.
Good drainage, it adopts 3 grades for draining, can drain lots of condensate water and oil contaminant so as to keep clean and dryness of the system and air, meanwhile reduce system load.
Multi-control of circuitry to supply to different users (single control; integrate circuit, linkage control, PC panel, frequency conversion, etc.)
Outer cooling fan with large volume, low noise, and long life if switch frequently.
Low condenser made from copper, slow flow, multi-cycling and high heat exchanging rate. It won't freezing and dirty if stop for a long time.
Armstrong foam burning resistant & adiabatic material. It's the least loss of cooling air.
Protection level of compressor is IP54 (dustproof and spill proof).





9 Specification



Model

Flow Capacity

Power Supply

Conn.

Dimensions LxWxH

Weight



M3/min



mm

Kg

XF-1F

1.2

220

ZG1”

680x490x670

60

XF-2F

2.4

220

ZG1”

700x450x920

80

XF-3F

3.8

220

ZG1 1/2”

850x500x970

105

XF-5F

5.2

220

ZG1 1/2”

850x500x970

135

XF-6F

6.5

220

ZG1 1/2”

900x560x1070

190

XF-8F

8

220

ZG1 1/2”

900x560x1070

210

XF-10F

10.7

380

ZG2”

1180x670x1140

225

XF-13F

13.8

380

ZG2”

1180x670x1140

260

XF-15F/W

17

380

DN65

1220x7000x11200

350

XF-20F/W

22

380

DN80

1360x710x1120

400

XF-25F/W

27

380

DN80

1550x850x1400

500

XF-30F/W

35

380

DN80

1650x930x1500

600

XF-40F/W

45

380

DN100

1860x1050x1610

750

XF-50F/W

55

380

DN125

1950x1050x1690

820

XF-80F/W

87

380

DN150

2540x1750x2400

2000

XF-100F/W

110

380

DN150

2500x1850x2600

2200
