| Condition: | New | Type: | Rotary Drilling Rig |
|---|---|---|---|
| Power Type: | Diesel | Rock Hardness: | Rock Hardness |
| After-sales Service Provided: | Engineers Available To Service Mac | ||
| High Light: | electric screw air compressor,screw drive air compressor |
||

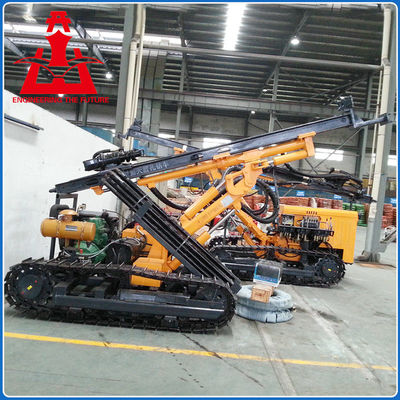

New product Kaishan manufacturer KG935 diesel engine crawler drilling rig machine 105-140mm 25m deepth
KG935 Geotechnical Drilling Rig Featurers:
1. Powerful and reliable engine
adopts double cylinder diesel as a driving force, traction power, climbing ability; The machine small vibration, work smoothly.To use the patent of diesel, intake adjusting device (patent Number : 200820087606.3) plus desert air filter level 3 filtering the combination of enhanced drill car to bad environment adaptability and prolong the service life of the diesel engine.
2. Adjustable boom
Adopt activity boom, through control the telescopic cylinders to adjust the angle and horizontal drilling
holes height, expanding the drilling range, improved product flexibility.
3. Reliable hydraulic pump set
Using two separate gear pump oil, reliable, adaptable, and easy maintenance.· This machine adopt the
gear transmission and soft features for connection ,so compact structure, smooth operation.
4. Reliable hydraulic system
Adopt special hydraulic components. That improves the system’s stability and reliability. Install oil liquid
cooling device, to eliminate the exothermic hydraulic oil’s influence to the system
|
Model |
KG935 |
|
Rock rigidity |
f=6-20 |
|
Dia. Of Hole |
φ105-140mm |
|
Drilling depth |
25m |
|
Rotation speed |
0-100RPM |
|
Rotation torque |
2800Nm |
|
Lifting capacity |
17000N |
|
Feeding method |
Oil cylinder&chain |
|
Feeding distance |
3000mm |
|
Traveling speed |
0-2.5KM/H |
|
Climb ability |
30° |
|
Ground clearance |
320mm |
|
Total Weight |
6500kgs |
|
Dimension (mm) |
5400X2330*2020 |
|
Sliding carriage swing angle |
L.: 50°(95°) R.:50°(15°) |
|
Drill boom(arm) swing angle |
L.: 45° R.:90° |
|
Carriage Compensation |
1200mm |
|
Engine |
YC4D80(58KW 2400r/min) |
|
Drill rod specification |
φ76*3000 |
|
Working pressure |
1.05-2.46Mpa |
|
Drill rod length |
2000mm for first piece, other six piece(3000mm) |
Powerful and Reliable Deisel Engine
1. The drilling rig machine adopt famous 2-cylinder diesel engine as driving force which has advantages of large power, powerful grade-ability, small vibration and reliable operation.
2. The portable drilling rig adopt patent diesel engine air inlet regulating device (Patent No. : 200820087606.3) and desert air filter two-stage filter. That strengthens the crawler rock drill’s adaptability to severe environment and lengthened
the diesel engine’s service life.
Boom of the drilling rig is adjustable. The angle of drilling hole and height of horizontal hole can be adjusted by controlling the stretch-out and draw-back of the hydro-cylinder. That enlarges the drilling hole’s range and improve the machine’s adaptability.
Reliable Hydraulic Pump Set
1. Oil supplied by two independent gear pumps, reliable operation, strong adaptability, easy maintenance.
2. The drilling rig machine adopt gear transmission and soft connection, possessing compact structure and stable operation.
Reliable Hydraulic System
1. The mobile drilling rig adopt special hydraulic components. That improves the system’s stability and
reliability.
2. Install oil liquid cooling device eliminatting the exothermic hydraulic oil’s influence on the system
